Repair Windshield Washer System Hose For Rear Window - AR82.35-S-6986E
Model 447, 448
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Repair | |||
| 1 | Expose leaky area of hose for windshield washer system for rear window | ||
| 2 | Sever leaky area of hose for windshield washer system for rear window | ||

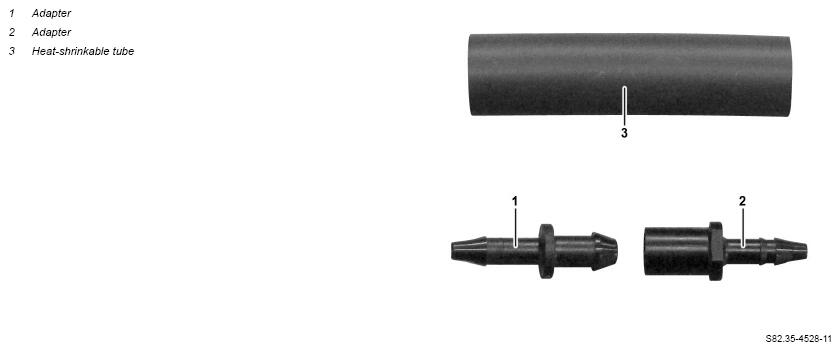

| 3 | Heat one end of hose with hot-air blower and insert adapter (1) in end of hose | ||
| 000 588 15 84 00 Heat gun | Insert adapter (1) into hose up to end stop. |
WS54.00-P-0125B | |
| 4 | Heat the other end of hose with hot-air blower and insert adapter (2) in end of hose | Insert adapter (1) into hose up to end stop. |
|
| 5 | Slide on heat-shrinkable tube (3) on one side of hose for windshield washer system for rear window | ||
| 6 | Push adapter (1) onto adapter (2) up to end stop | ||
| 7 | Slide heat-shrinkable tube (3) centrally over connection of adapters (1, 2) | ||
| Risk of injury caused by burns to skin and eyes. Risk of poisoning caused by inhaling fumes when working with heat-shrinkable tubing. | Work in well ventilated rooms only. Wear safety glasses with side protection and protective gloves. | AS00.19-Z-0001-01A | |
| 8 | Heat heat-shrinkable tube (3) with hot-air blower | Only point hot-air blower at heat-shrinkable tube (3). Otherwise the adjacent components can be damaged. |
