Removing/Installing Reading Lamp In Roof Bed - AR82.20-S-1125E
Model 447.7/8
With Code ZK8 (Bed in roof)
Shown on lamp, pop-up roof at left (E11/5)
| Notice | Notes on carrying out repair work in the vehicle interior | AH68.00-D-0001-01KOS | |
| Remove/install | |||
| 1 | Open pop-up roof until the lamp, pop-up roof at left (E11/5) or lamp, pop-up roof at right (E11/6) is accessible | Model 447.8 with code ZK0 (EASY UP pop-up roof, electric) with code ZK8 (Bed in roof) |
AR77.75-S-0001-03E |
| Model 447.7/8 with code ZK8 (Bed in roof) with code ZK9 (Lifting roof hatch) |
AR77.70-S-0001-01E | ||
| 2 | Lower roof bed | ||

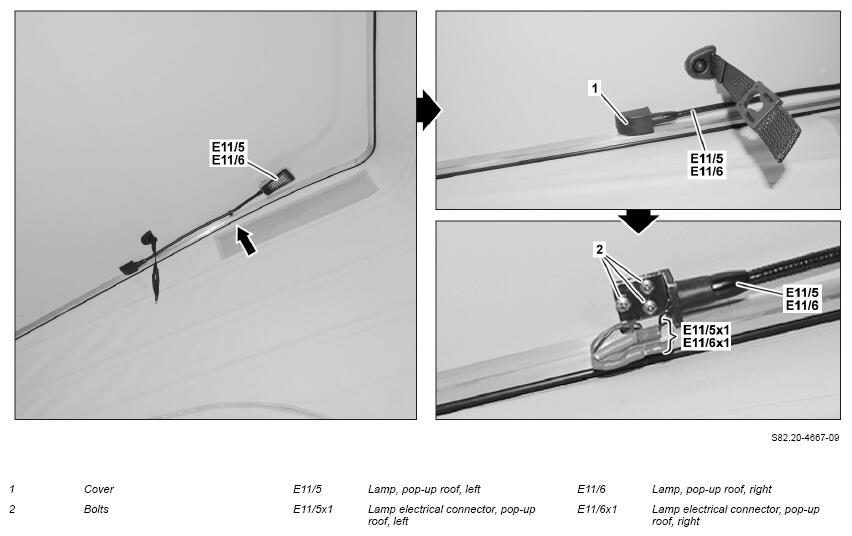

| 3 | Unclip lamp, pop-up roof at left (E11/5) or lamp, pop-up roof at right (E11/6) at bracket (arrow) | ||
| 4 | Detach cover (1) downwards and remove | ||
| 5 | Disconnect electrical connector for lamp, pop-up roof at left (E11/5x1) or electrical connector for lamp, pop-up roof at right (E11/6x1) | ||
| 6 | Unscrew screws/bolts (2) and remove lamp, popup roof at left (E11/5) or lamp, pop-up roof at right (E11/6) | ||
| 7 | Install in the reverse order | ||
| Check | |||
| 8 | Perform function check of lamp, pop-up roof at left (E11/5) or lamp, pop-up roof at right (E11/6) |
