Remove/Install Mounting Bracket For Tablet PC Holder On Front Seat - AR82.80-S-1096E
Model 447 With Code EI7 (Preinstallation for entertainment and comfort features)
Model 448.8 With Code EM4 (Rear Seat Entertainment)
| Notice | Notes on carrying out repair work in the vehicle interior | AH68.00-D-0001-01KOS | |
| Remove/install | |||
| 1 | Remove backrest padding | Model 447.8 with code SE0 (Seat climate control for driver) Model 447.8 with code SE1 (Seat climate control for front passenger) Model 448.8 with code SE0 (Seat climate control for driver) Model 448.8 with code SE1 (Seat climate control for front passenger) |
AR91.10-S-1095E |

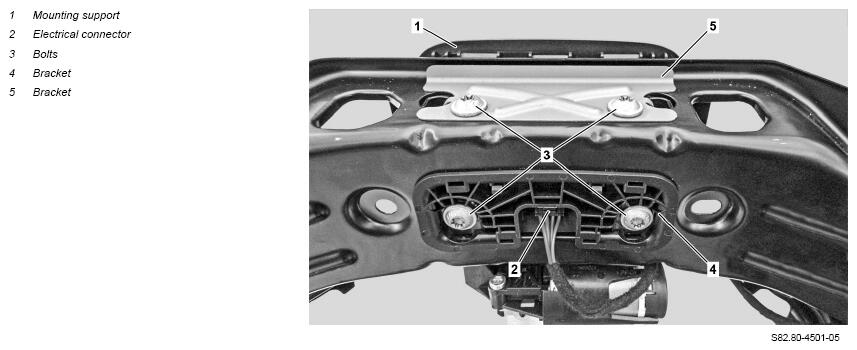

| 2 | Disconnect electrical connection (2) | ||
| 3 | Remove screws (3) | ||
| 4 | Remove holder (5) | ||
| 5 | Remove bracket (4) | ||
| 6 | Remove mounting bracket (1) | ||
| 7 | Install in the reverse order. |
