Remove/Install Mounting Bracket Cover For Tablet PC Holder On Front Seat - AR82.80-S-1095E

Model 447 With Code EI7 (Preinstallation for entertainment and comfort features)

Model 448.8 With Code EM4 (Rear Seat Entertainment)

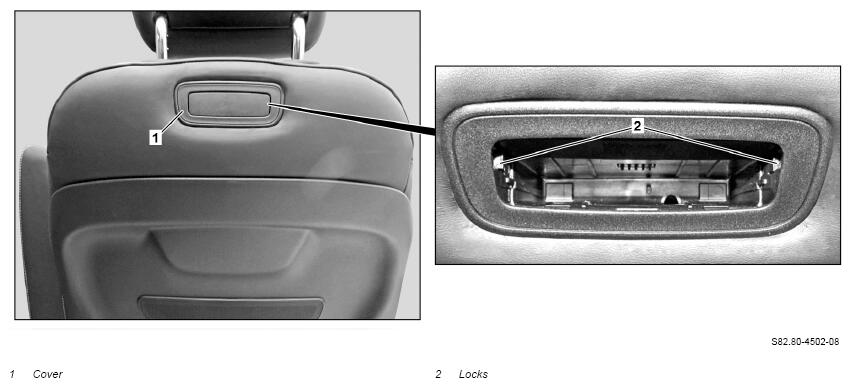

G16488547Courtesy of MERCEDES-BENZ USA
Notice  Notes on carrying out repair work in the vehicle interior   AH68.00-D-0001-01KOS
REMOVINGINSTALLING Remove/install
1 Open cover flap (1) IMPORTANT To do so, release the flap using the mounting bracket for the tablet PC bracket.
2 Release locks (2) and remove cover (1) INSTALLATION IMPORTANT The cover (1) must latch audibly into place.
3 Install in the reverse order
