Remove/Install License Plate Lamps - AR82.10-S-5161E
Model 447, 448
Vehicles With Code W65 (Liftgate) or With Code W68 (Electrically actuated liftgate)
Vehicles With Code W50 (Two-wing rear-end door, 180 degrees, without window) or code W54 (Two-wing rear-end door, 270 degrees)
| Remove/install | |||
| 1 | Remove liftgate paneling (1) | Model 447, 448 with code W65 (Tailgate) Model 447, 448 with code W68 (Electrically operated liftgate) |
AR72.20-S-6445E |

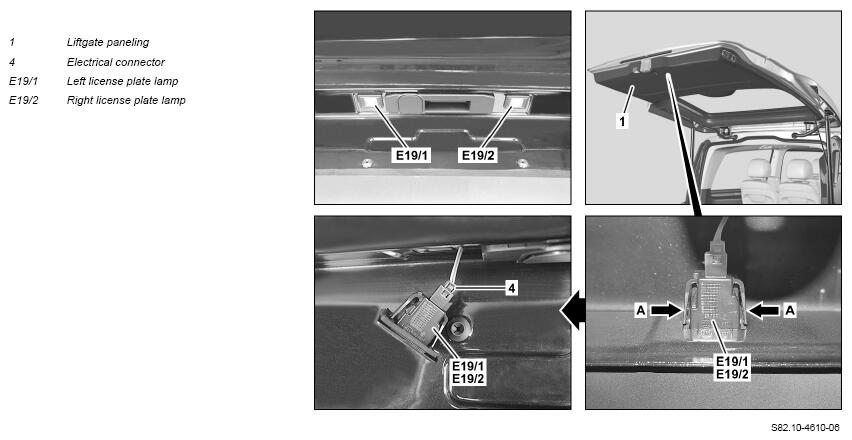

| 2.1 | Press catch hooks (arrows A) together and unclip left license plate lamp (E19/1) or right license plate lamp (E19/2) from liftgate | Model 447, 448 with code W65 (Tailgate) Model 447, 448 with code W68 (Electrically operated liftgate) |
|

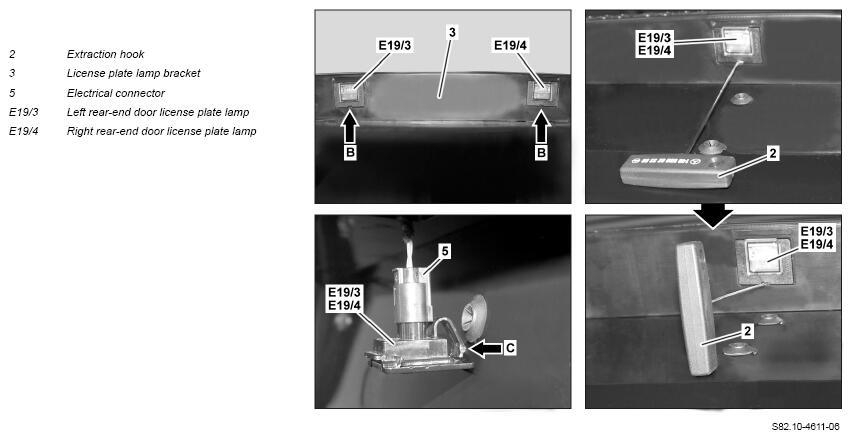

| 2.2 | Unclip left rear-end door license plate lamp (E19/3) or right rear-end door license plate lamp (E19/4) from license plate lamp bracket (3) with an extraction hook (2) | Model 447 with code W50 (Rear-end door, double-wing, 180 degrees without window) Model 447 with code W54 (2-wing rear-end door, 270 degrees) |
Fig 1 |
| 3.1 | Disconnect electrical connector (4) and remove left license plate lamp (E19/1) or right license plate lamp (E19/2) | Model 447, 448 with code W65 (Tailgate) Model 447, 448 with code W68 (Electrically operated liftgate) |
|
| 3.2 | Disconnect electrical connector (5) and remove left rear-end door license plate lamp (E19/3) or right rear-end door license plate lamp (E19/4) | Model 447 with code W50 (Rear-end door, double-wing, 180 degrees without window) Model 447 with code W54 (2-wing rear-end door, 270 degrees) |
|
| 4 | Install in the reverse order | ||
| Check | |||
| 5.1 | Check function of left license plate lamp (E19/1) and right license plate lamp (E19/2) | Model 447, 448 with code W65 (Tailgate) Model 447, 448 with code W68 (Electrically operated liftgate) |
|
| 5.2 | Check function of left rear-end door license plate lamp (E19/3) and right rear-end door license plate lamp (E19/4) | Model 447 with code W50 (Rear-end door, double-wing, 180 degrees without window) Model 447 with code W54 (2-wing rear-end door, 270 degrees) |
