Remove/Install Lamp For Vanity Mirror - AR82.20-S-5582E
Model 447, 448
With Code FS5 (Illuminated vanity mirrors for sun visors)
| Notice | Notes on carrying out repair work in the vehicle interior | AH68.00-D-0001-01KOS | |
| Remove/install | |||
| 1 | Fold down left or right sun visor (1) | ||

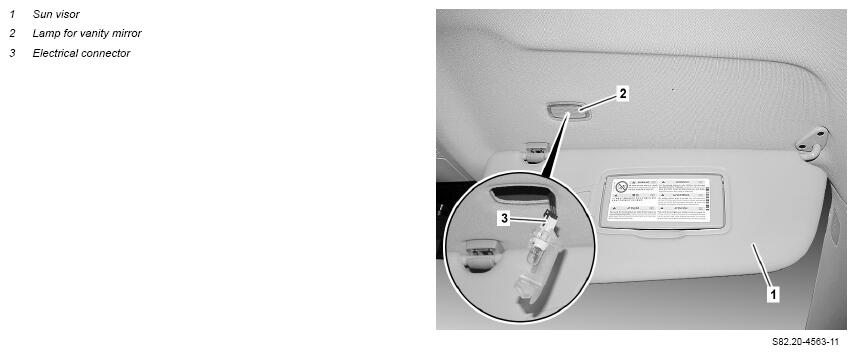

| 2 | Remove left or right lamp for vanity mirror (2) | Fig 1 | |
| 3 | Disconnect electrical connector (3) of the left or right lamp for vanity mirror (2) | ||
| 4 | Install in the reverse order | ||
| Check | |||
| 5 | Perform function check of the left or right lamp for vanity mirror (2) |
