Remove/Install Interior Lamp In Rear Load Compartment - AR82.20-S-5614E
Model 447.6/7
With Code LC2 (LED light strip in load compartment)
| Notice | Notes on carrying out repair work in the vehicle interior | AH68.00-D-0001-01KOS | |
| Remove/install | |||

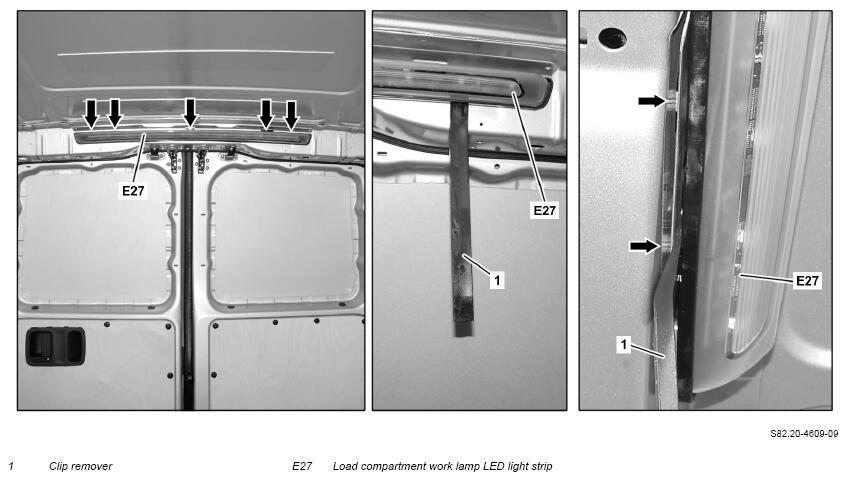

| 1 | Unclip load compartment work lamp LED light strip (E27) with clip remover (1) in area of retaining clips (arrows), as shown | Fig 1 | |

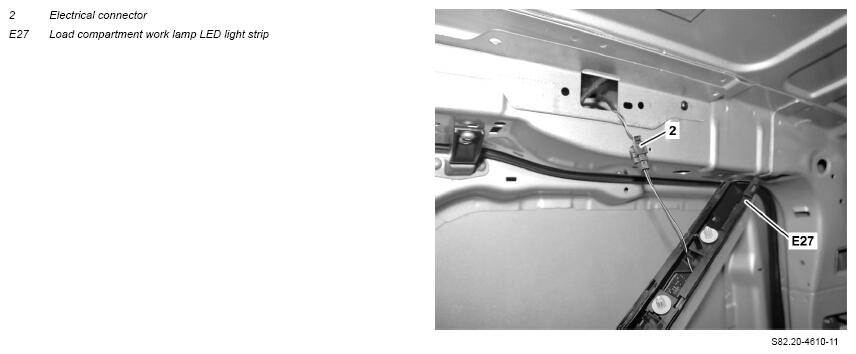

| 2 | Detach load compartment work lamp LED light strip (E27) far enough so that the electrical connector (2) is accessible | ||
| 3 | Disconnect the electrical connector (2) and remove the load compartment work lamp LED light strip (E27) | If retaining clips are damaged: ↓ Replace retaining clip. |
|
| 4 | Install in the reverse order | ||
| Check | |||
| 5 | Perform function check of load compartment work lamp LED light strip (E27) |
