Remove/Install Glove Compartment Lamp - AR82.20-S-0114E
Model 447, 448
With Code F66 (Glove compartment, lockable)
| Notice | Notes on carrying out repair work in the vehicle interior | AH68.00-D-0001-01KOS | |
| Remove/install | |||

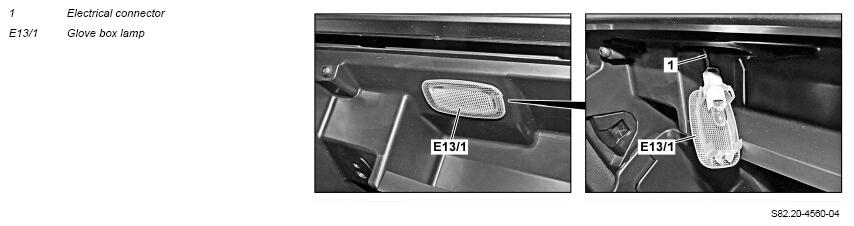

| 1 | Unclip glove compartment lamp (E13/1) and remove until electrical connector (1) is accessible | ||
| 2 | Disconnect electrical connector and remove glove compartment lamp (E13/1) | ||
| 3 | Install in the reverse order | ||
| Check | |||
| 4 | Perform function check of glove compartment lamp (E13/1) |
