Remove/Install Center High-Mounted Stop Lamp - AR82.10-S-5375EE
Model 447.6/7
With Code W50 (Rear-end door, double-wing, 180 degrees without window)
Model 447.6/7
With Code W54 (Hinged rear doors, opening to side wall)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Remove/install | |||
| 1 | Open both rear-end doors | ||

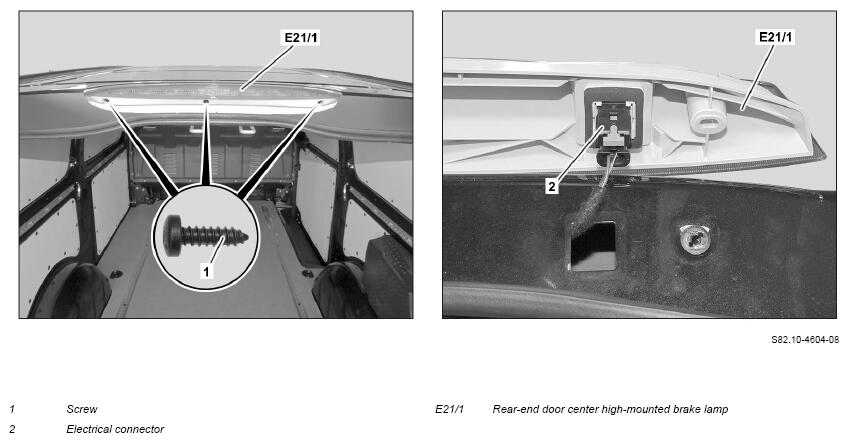

| 2 | Remove screws/bolts (1) and remove rear-end door center high-mounted brake lamp (E21/1) until electrical connector (2) is accessible | ||
| 3 | Unlock and detach electrical connector (2) and remove rear-end door center high-mounted brake lamp (E21/1) | ||
| 4 | Install in the reverse order | ||
| Check | |||
| 5 | Perform function test of rear-end door center high-mounted brake lamp (E21/1) |
