Remove/Install Bulb Of Dome Lamp In Passenger Compartment - AR82.20-S-5608E
Model 447.7, 448.7
| Remove/install | |||
| 1 | Remove passenger compartment dome lamp (1) | AR82.20-S-0117E | |

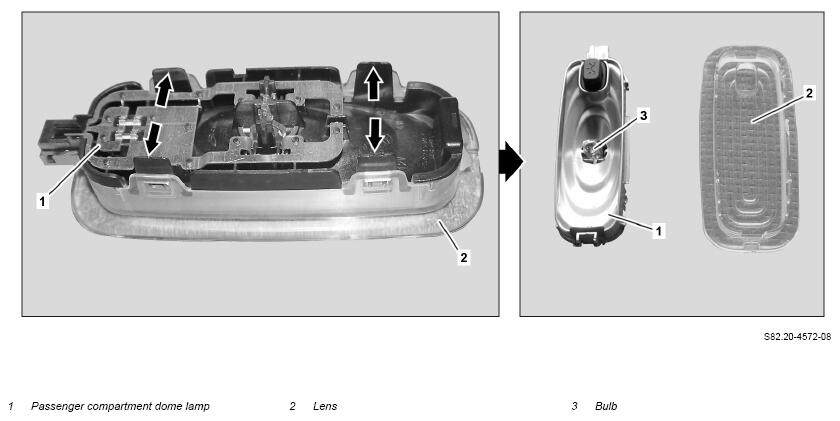

| 2 | Release catches (arrows) and remove lens (2) from dome lamp in passenger compartment (1) | ||
| 3 | Remove bulb (3) | Do not touch the glass bulb with bare fingers; use a soft cloth free of oil and grease. Otherwise, the glass bulb will be damaged in operation. |
|
| 4 | Install in the reverse order | ||
| Check | |||
| 5 | Perform function check of passenger compartment dome lamp (1) |
