Windshield Washer System - Inspect Fluid Level, Adjust To Correct Level - AP82.35-S-8210E

Model 447, 448

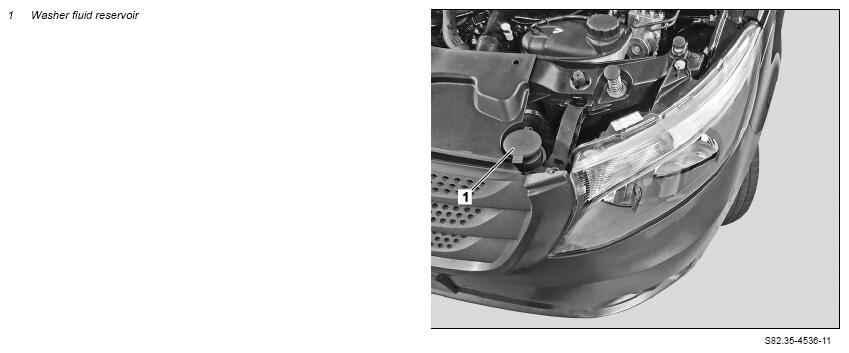

G16484057Courtesy of MERCEDES-BENZ USA
DANGER Risk of fire and explosion  caused by ignition of window washing fluid or antifreeze and their vapors. Risk of poisoning  caused by swallowing window washing fluid or antifreeze or inhaling their vapors. Risk of injury  or physical irritations caused by contact of window washing fluid or antifreeze with eyes, mucous membranes or skin. Wear protective clothing and tight-fitting safety glasses. No open flames, fire or ignition sources. Avoid contact with eyes, mucous membranes and skin. When working with window washing fluids or antifreeze, do not eat, drink, or smoke.
Do not inhale vapors and ensure sufficient ventilation in the working area. Store window washing fluid and antifreeze leakfree in safely closed original containers and out of the reach of children.
AS82.35-Z-0001-01A
Notice  General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment Model 447 with engine 780 AH00.00-Z-0300-01A
  Filling
1 Fill washer fluid reservoir (1) with windshield washer fluid.
REFER TO CAPACITIES & SPECIFICATIONS Windshield washer fluid concentrate IMPORTANT Prepare the windshield washer fluid using water and MB windshield washer concentrate to match the mixing ratio given in the table on the packaging. Use only approved MB windshield washer concentrate BB00.40-P-0371-00A
