Inspect Wiper Blade - AP82.30-S-8253P
Model 415, 420, 447, 448, 470, 471, 639, 906, 907, 910
Version A
Version B
Maintenance indicator on wiper blade
| Injury hazard from pinching and crushing, in extreme cases extremities can even be cut off when caught in windshield wiper mechanism. | When working on the windshield wiper mechanism, always switch off the ignition and store transmitter key outside of transmission range (at least 2 m). | AS82.30-Z-0001-01A | |
| Notice | General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment | Model 420, 447, 639 with engine 780 Model 907, 910 with engine 780 |
AH00.00-Z-0300-01A |
| Preparatory activity | |||
| 1 | Close hood. | ||

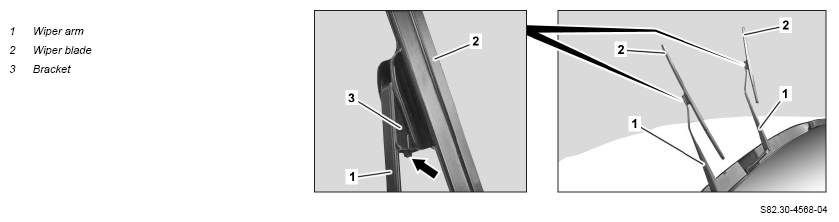

| 2 | Fold out wiper arms (1) of windshield or rear window. | ||
| Check | |||
| 3 | Check maintenance display of wiper blades (2). | Wiper blades (2) with maintenance indicator. If the protective foil is still present on the maintenance display, ↓ Remove protective foil. If the maintenance display is yellow, ↓ Replace wiper blades (2). |
|
| 4 | Check wiper blades (2) for proper mounting and damage. | If necessary, ↓ Replace wiper blades (2). |
|

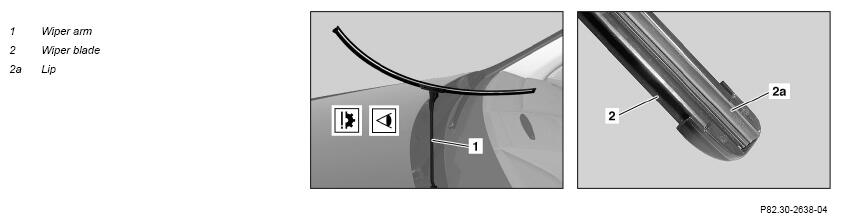

| 5.1 | Check wiper rubber lips (2a) for hardening, cracks, wear and correct seating in the guides and end caps. | Vehicle with version A. If necessary, ↓ Replace wiper blades (2). |
|
| 5.2 | Check wiper rubbers of wiper blades (2) for hardening cracks, wear and correct seating in guides and end caps. | Vehicle with version B. If necessary, ↓ Replace wiper blades (2). |
|
| 6 | Fold wiper arms (1) back onto windshield or rear window. |
