Sound System Amplifier Control Unit, Component Description - GF82.62-S-5010A

Model 447

With Code E65 (Burmester® surround sound system)

With Code XM7 (MOPF II)

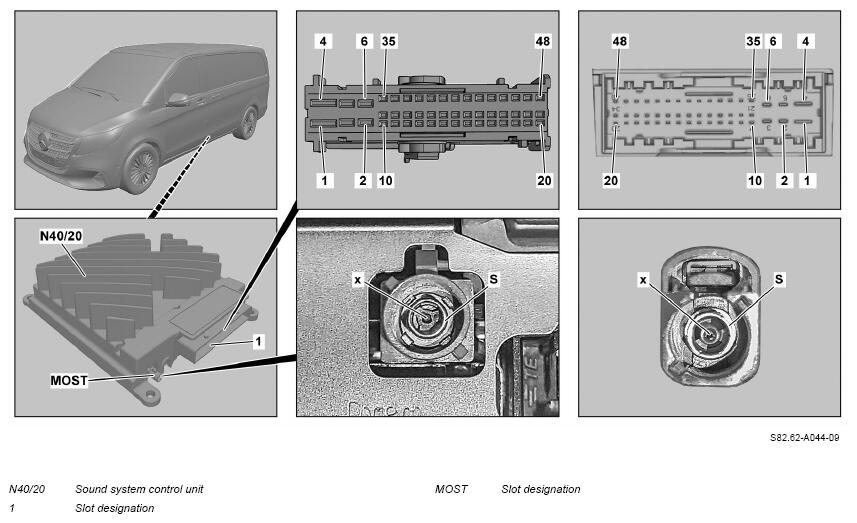

Sound system amplifier control unit, Shown On Model 447.8

The numbers on the pins indicate the pin numbering of the slots.

Overview

This document contains information on:

• General
• Function
  • Receive signals
  • Decoding, supporting and amplifying signals
  • Transmitting signals

General

The sound system control unit (N40/20) is located under the left front seat.

Function

The sound system control unit (N40/20) has the following tasks:

Receive signals

The sound system control unit (N40/20) receives the following signals:

• Power supply via circuit 30 and circuit 31
• Mute function signal from HERMES control unit (N112/9) (with code JH3 (Communication module (LTE) for digital services))
• Audio parameters via MOST from radio (Audio/COMAND) (e.g. volume and tone settings)
• Audio signals via Media Oriented System Transport (MOST) from head unit (A26/17)

Decoding, supporting and amplifying signals

• Decoding of copy-protected audio signals based on Digital Signal Processing (DSP) technology
• Supporting surround sound
• Supporting stereo entertainment channels and announcement channels (e.g. for voice output of navigation announcement, etc.)
• Amplifying decoded audio signals
• Left rear portal surround speaker (H23/80)

Transmitting signals

The sound system control unit (N40/20) transmits electrical signals to the following component parts for audio output:

• Left front door bass/mid-range speaker (H4/1)
• Right front door bass/mid-range speaker (H4/2)
• Bass speaker (H4/29)
• Left front tweeter (H23/1)
• Right front tweeter (H23/2)
• Left rear tweeter (H23/11)
• Right rear tweeter (H23/12)
• Left rear woofer/mid-range speaker (H23/15)
• Right rear woofer/mid-range speaker (H23/16)
• Left center cockpit center fill speaker (H23/71)
• Left rear portal surround speaker (H23/80)
• Right rear portal surround speaker (H23/81)
• Left sliding door high-range surround speaker (H23/82)
• Left sliding door mid-range surround speaker (H23/83)
• Right sliding door high-range surround speaker (H23/84)
• Right sliding door mid-range surround speaker (H23/85)
