Hand Detection Sensor, Component Description - GF82.90-S-0007A

Model 447

With Code CA3 (Active Steering Assist)

With Code XM7 (MOPF II)

The numbers on the pins indicate the pin numbering of the slots.

Hand detection sensor, Shown On Model 447.8

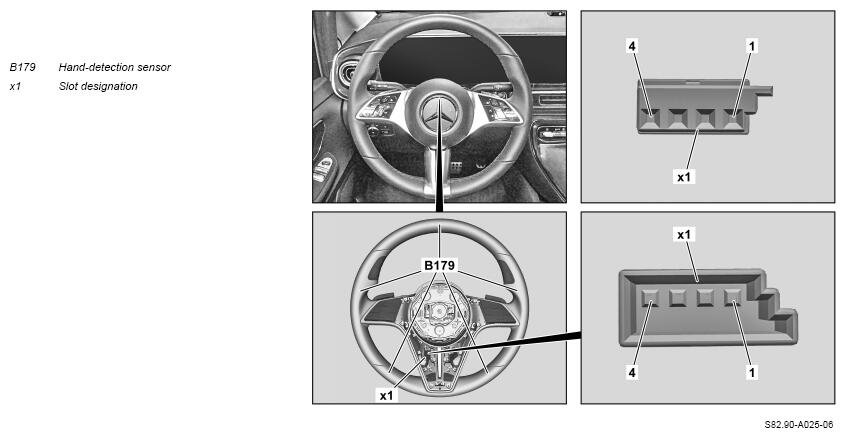

Fig 1: Hand Detection Sensor Components Location - Model 447 With Code CA3 And XM7

Courtesy of MERCEDES-BENZ USA

Overview

This document contains information on:

General
Function

General

Hand detection sensor (B179) is installed in steering wheel rim.

Function

The hand detection sensor (B179) sends the hand detection sensor signal to the hand detection system control unit (N179). It is processed there and then forwarded to other relevant control units.

The following input factors and initial parameters are read in/output by the hand detection system control unit (N179) via direct lines by the hand detection sensor (B179):

Input factors over a direct line	Initial parameters over a direct line
-	Hand detection sensor signal
