HERMES Control Unit, Component Description - GF82.85-S-0221A
Model 447
With Code JH3 (Communication module (LTE) for digital services)
With Code JH6 (Pre-installation for communications module for digital services (LTE))
With Code XM7 (MOPF II)
The numbers on the pins indicate the pin numbering of the slots.

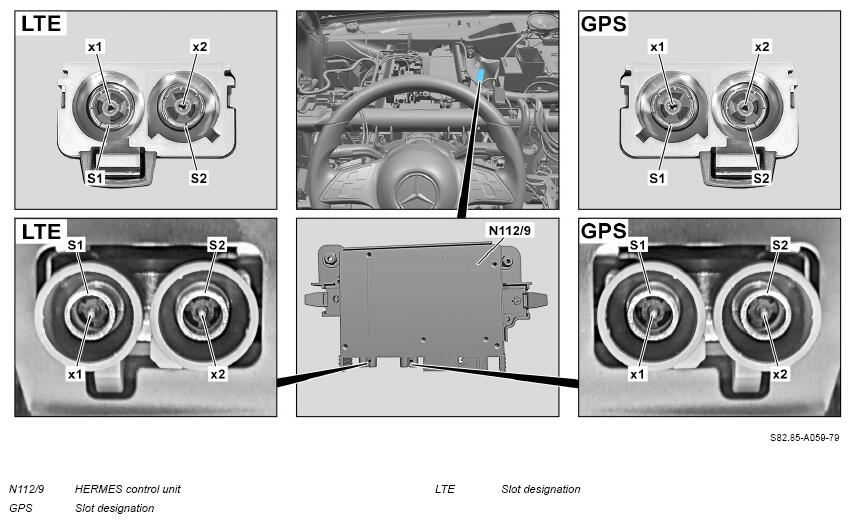

HERMES control unit, Shown On Model 447.8

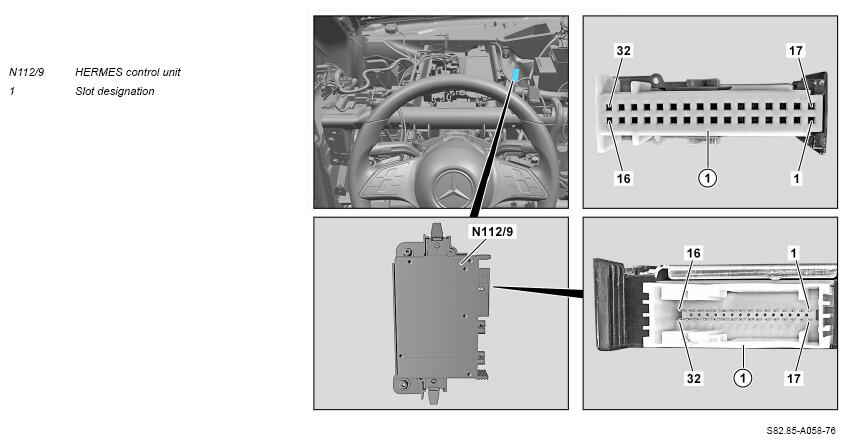

HERMES control unit, Shown On Model 447.8
The numbers on the pins indicate the pin numbering of the slots.
Overview
This document contains information on:
- General
- Function
- Structure
General
The HERMES control unit (N112/9) is located under the instrument panel in the area of the steering column.
Function
The HERMES control unit (N112/9) has the following tasks:
- Prioritization of the services in the internal arithmetic unit
- Self-diagnosis, secures operational readiness of emergency call system by checking the following facts:
- Reception of cyclic readiness signal from Supplemental Restraint System (SRS) control unit (N2/5)
- Connection for muting audio sources (mute function)
- Connection to hands-free system microphone (B25/4) via the head unit (A26/17)
- Connection to GPS antenna (A2/47), HERMES GSM antenna (A2/163)
- Setup of voice connections or data links to the service provider via the HERMES GSM antenna (A2/201)
- Reception of hands-free system microphone signals (B25/4)
- Transmission of audio signals to the taxi two-way radio/ERA-GLONASS/Hermes cockpit speaker, right center (H6/1)
- Reception of GPS signals (global navigation system) for position finding via the GNSS antenna (M21/4a2)
- Forwarding of real-time traffic data from service provider to head unit (A26/17) over a direct line
- CAN communication via diagnostic CAN (CAN D) with the electronic ignition lock (EZS) control unit (N73/8) and the diagnostics connection (X11)
Input parameters and initial parameters for the following control units are sent or received by the HERMES control unit (N112/9) over the hybrid CAN (CAN L):
| Input parameters and output parameters over the hybrid CAN (CAN L) | Supplemental information |
|---|---|
| Head unit (A26/17) | With code E7M (MBUX multimedia system) With code E7H (MBUX multimedia system High) |
| High-voltage battery (G1/29) | - |
| Sound generator control unit (N12/2) | With code J2A (Acoustic ambient protection) |
| DC current charge-connection unit (N24/6) | - |
| DC/DC converter control unit (N83/3) | - |
| Alternating current charger for high-voltage battery (N83/11) | - |
| Powertrain control unit (N127) | - |
"HERMES" stands for: "Hardware for Enhanced Remote, Mobility & Emergency Services".
Structure
- Integrated Internet-compatible communications module with Bluetooth® interface and with radio interface for wireless local area network (WLAN)
- Integrated locating module
- Integrated GPS receiver for position finding (date, time, history and last known location)
- Memory for navigation and vehicle-specific data
