Driver Camera, Component Description - GF82.90-S-5051A
Model 447
With Code JK8 (Driver camera)
With Code XM7 (MOPF II)

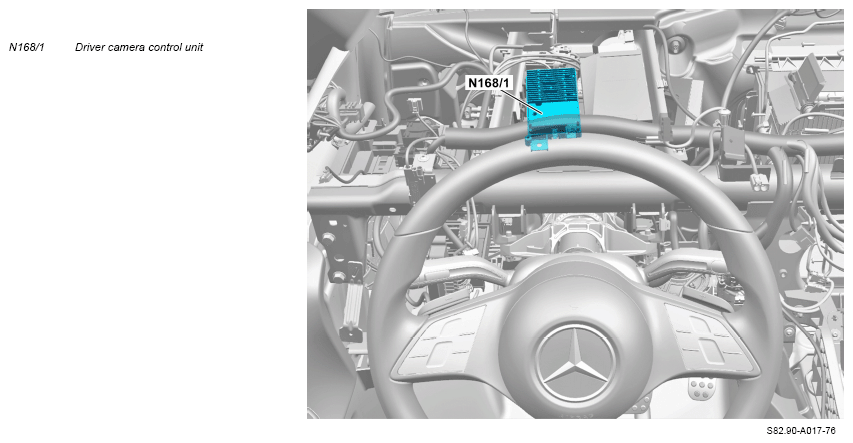

Driver camera control unit, Shown On Model 447.8

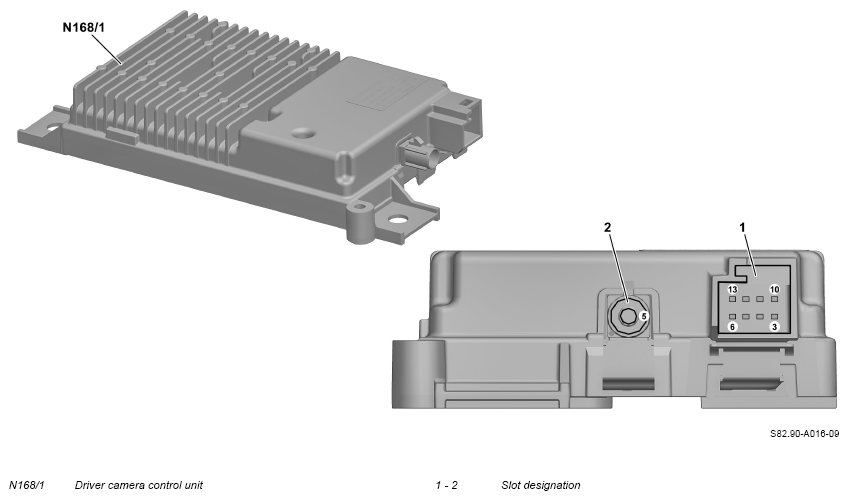

The numbers on the pins indicate the pin numbering of the slots.
Driver camera control unit, Shown On Model 447.8
Overview
This document contains information on:
- General
- Function
- Reading in of signals
- Evaluation of input factors
- Actuation of components
- Transmission of requests and information
General
The driver camera control unit (N168/1) is installed behind the instrument panel.
Function
The driver camera control unit (N168/1) has the following tasks:
- Reading in of signals
- Evaluation of input factors
- Actuation of components
- Transmission of requests and information
Reading in of signals
The input factors are read in via the following connections:
- Direct line
- User interface CAN (CAN-HMI)
Direct line
The signal from the driver camera (B84/30) is read in over a direct line.
User interface CAN (CAN-HMI)
The following signals are read in over the user interface CAN (CAN-HMI):
- Status of ignition lock from electronic ignition lock (EIS) control unit (N73/8)
- Steering wheel angle from electrical power steering (ES) control unit (N68) over the electronic ignition lock (EIS) control unit (N73/8)
- Vehicle longitudinal speed from Supplemental Restraint System (SRS) control unit (N2/5)
- Status of on-board electrical system battery from signal acquisition and actuation module (SAM) control unit (N10/1) over electronic ignition lock (EIS) control unit (N73/8)
- Status of deep discharge protection from signal acquisition and actuation module (SAM) control unit (N10/1) over electronic ignition lock (EIS) control unit (N73/8)
- Status of front doors from left front door control unit (N69/3), right front door control unit (N69/4) over signal acquisition and actuation module (SAM) control unit (N10/1) and over electronic ignition lock (EIS) control unit (N73/8)
Evaluation of input factors
The read-in input factors are evaluated by the integrated microprocessor, the relevant components are then actuated and requests/information are output.
Actuation of components
The driver camera (B84/30) is actuated directly.
Transmission of requests and information
The following requests and information are output over the user interface CAN (CAN-HMI):
- Detection of driver through various comparisons (e.g. mouth opening, etc.) to the electronic ignition lock (EIS) control unit (N73/8)
- Detection of extended eyelid closures/degree of eyelid closure to the electronic ignition lock (EIS) control unit (N73/8)
- Head rotation to the electronic ignition lock (EIS) control unit (N73/8)
