Sliding Door Entry Complete Install And Weld In - Ar63.30-S-0008-03E

	000 588 12 84 00 Welder		WS00.00-P-0318K
	000 588 13 84 00 Welder		WS60.00-P-0437K

Model 447, 448

Refer to the superordinate service document for further information.

Observe safety information in the superordinate service document.

The next steps are shown on model 447 with code T19 (left sliding door) on the left side of the vehicle and must be carried out in the same way on the right side of the vehicle in the event of damage.

Courtesy of MERCEDES-BENZ USA

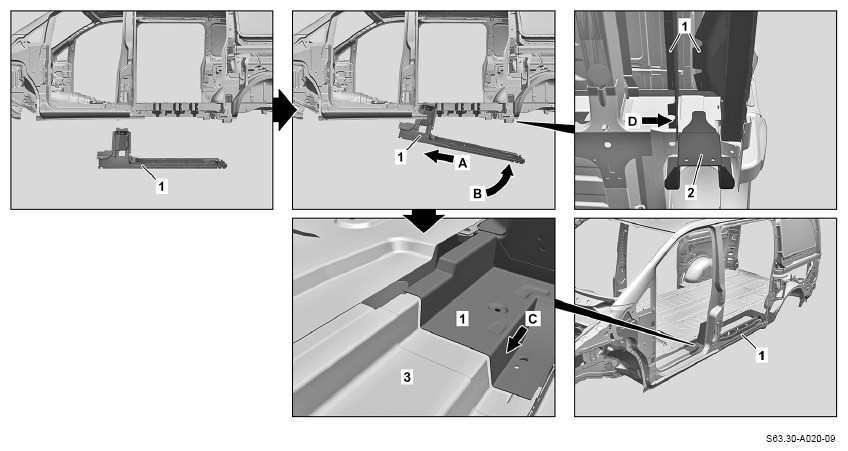

1. During installation, first, position the entrance (1) above the longitudinal member (3) with the front side from the bottom in the direction of the arrow (A) and in the direction of the arrow (C) and then install with the rear side in the direction of the arrow (B).

   Bend left shackle (arrow D) of the entrance (1) outward until the entrance (1) can be carried through on both sides of the jack support point (2).

   Aid of helper required.

2. Fit entrance (1) and fix in place.

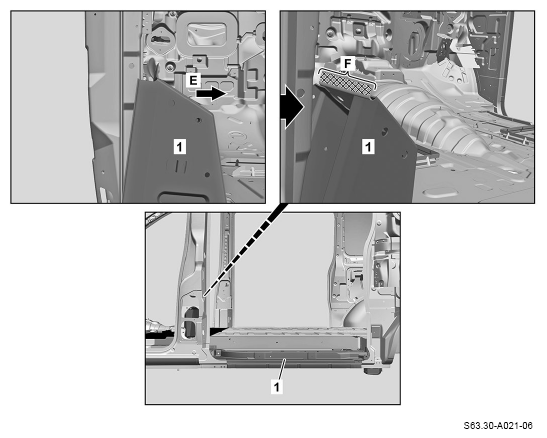

3. Apply 2-component adhesive to the hatched area of the entrance (1) (area F).

   Observe pretreatment of bonding surface (area F). Observe manufacturer's specifications for curing and processing times of 2-component adhesive.

   To do this, press entrance (1) in the direction of the arrow (E) until 2-component adhesive can be applied.

   Courtesy of MERCEDES-BENZ USA

   Courtesy of MERCEDES-BENZ USA

4. Entrance (1) (area J).

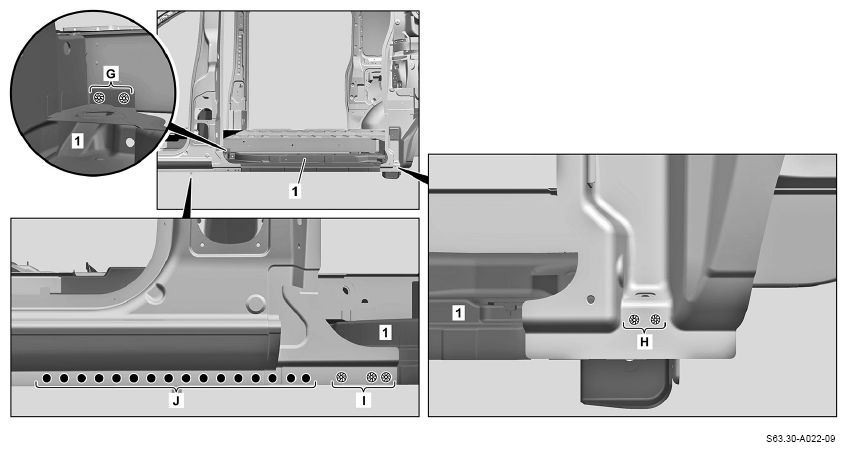

5. Entrance (1) (areas G, H, and I).
6. Clean weld joints (areas G, H, and I).
7. Remove shavings.
8. Coat weld joints with zinc dust paint (areas G, H, and I).

   Courtesy of MERCEDES-BENZ USA

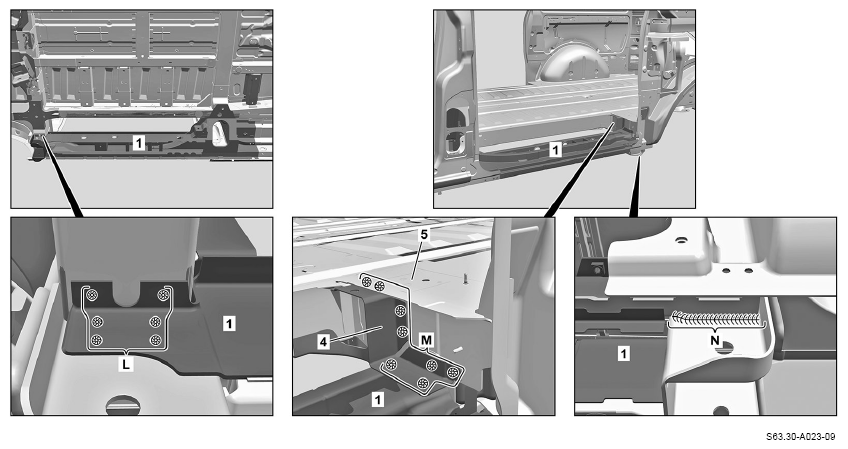

9. Entrance (1) (area L).
10. Entrance (1) (area N).
11. Fit angle bracket (4) and fix in place.
12. Angle bracket (4) (area M).
13. Clean weld joints (areas M and N).
14. Remove shavings.
15. Coat weld joints with zinc dust paint (areas M and N).

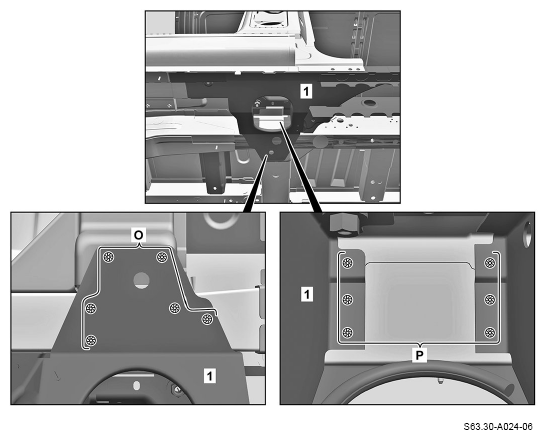

16. Entrance (1) (areas O and P).
17. Clean weld joints (areas O and P).
18. Remove shavings.
19. Coat weld joints with zinc dust paint (areas O and P).

    Courtesy of MERCEDES-BENZ USA

    Courtesy of MERCEDES-BENZ USA

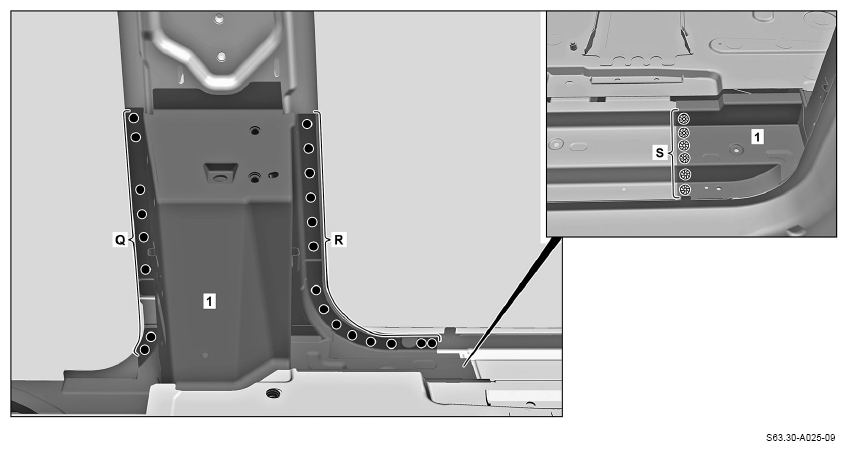

20. Entrance (1) (areas Q and R).
21. Entrance (1) (area S).
22. Clean weld joints (area S).
23. Remove shavings.
24. Coat weld joints with zinc dust paint (area S).

    Courtesy of MERCEDES-BENZ USA

25. Entrance (1) (area T).
26. Clean weld joints (area T).
27. Remove shavings.
28. Coat weld joints with zinc dust paint (area T).

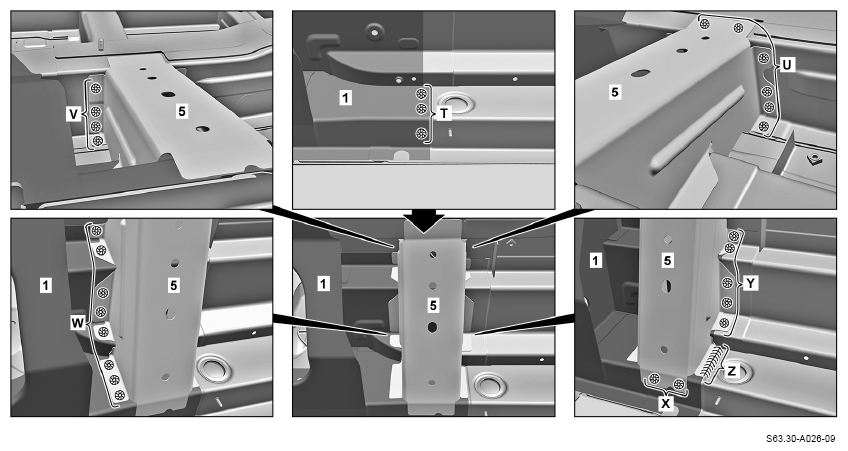

29. Install and fix in place mounting support (5).
30. Mounting support (5) (areas U, V, W, X, and Y).
31. Mounting support (5) (area Z).
32. Clean weld joints.
33. Remove shavings.
34. Coat weld joints with zinc dust paint.

    Courtesy of MERCEDES-BENZ USA

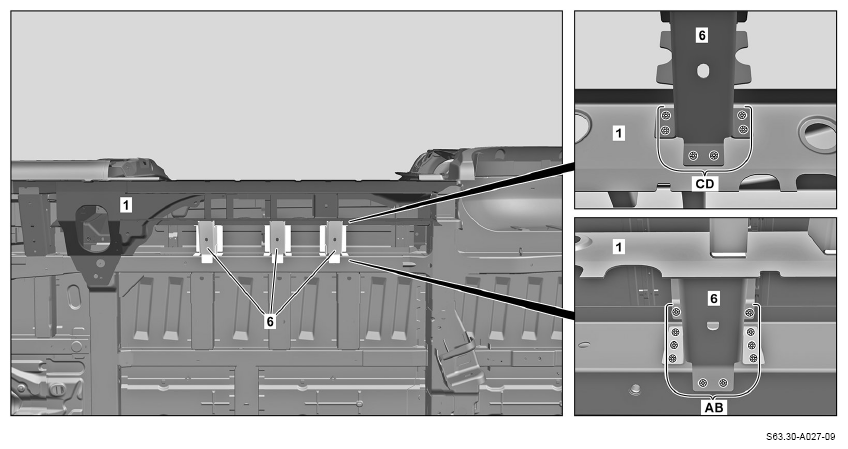

35. Install respective mounting support (6) and fix in place.
36. Respective mounting support (6) (areas AB and CD).
37. Clean weld joints.
38. Remove shavings.
39. Coat weld joints with zinc dust paint.

    Courtesy of MERCEDES-BENZ USA

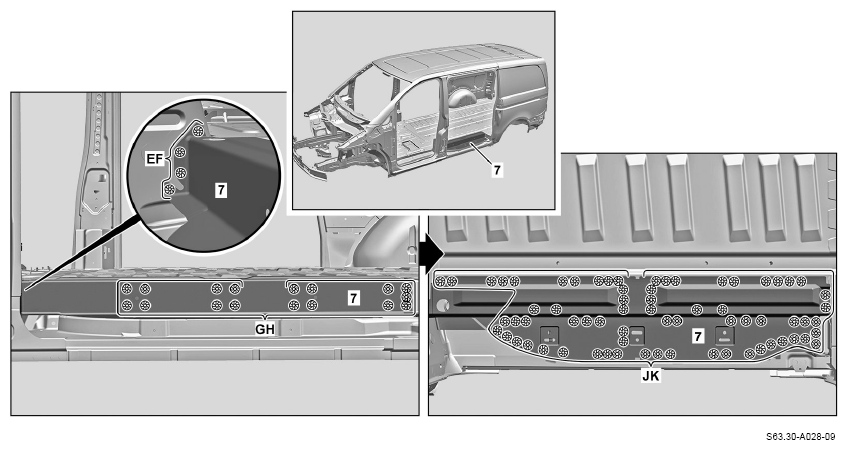

40. Install entrance step module (7) and fix in place.
41. Entrance step module (7) (areas EF, GH, and JK).
42. Clean weld joints.
43. Remove shavings.
44. Coat weld joints with zinc dust paint.

    Courtesy of MERCEDES-BENZ USA

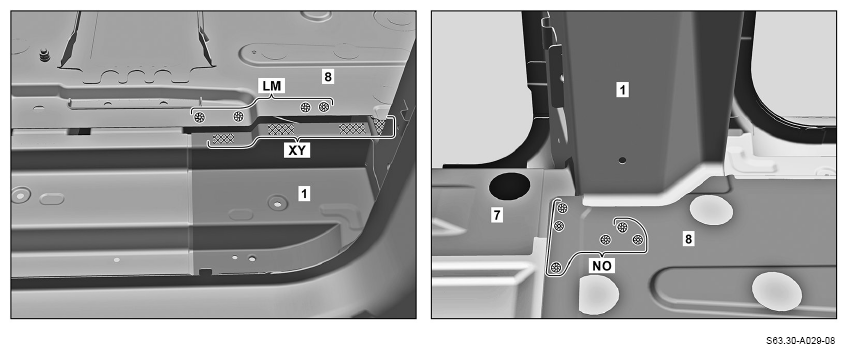

45. Apply 2-component adhesive to the hatched area of the entrance (1) (area XY).

    Observe preliminary treatment of bonding surface. Observe manufacturer's specifications for curing and processing times of 2-component adhesive.

46. Press front floor (8) onto the entrance (1).
47. Entrance (1) (area LM).
48. Press front floor (8) onto the entrance (1) and entrance step module (7).
49. Front floor (8) (area NO).
50. Clean weld joints.
51. Remove shavings.
52. Coat weld joints with zinc dust paint.

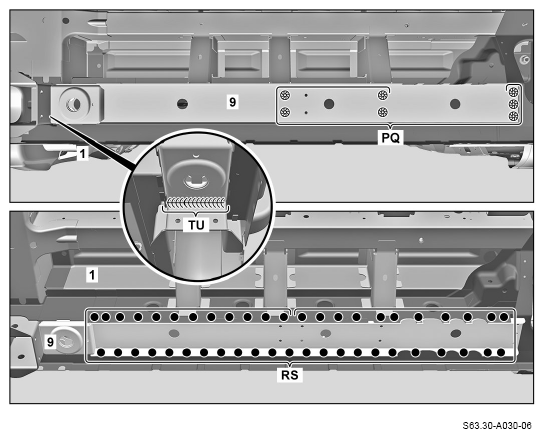

53. Install longitudinal member (9), fit, and fix in place.
54. Longitudinal member (9) (area RS).
55. Longitudinal member (9) (area PQ).
56. Longitudinal member (9) (area TU).
57. Clean weld joints.
58. Remove shavings.
59. Coat weld joints with zinc dust paint.

Courtesy of MERCEDES-BENZ USA
