Outer Sliding Door Entry Weld In - Ar63.30-S-0004-03E
Model 447, 448

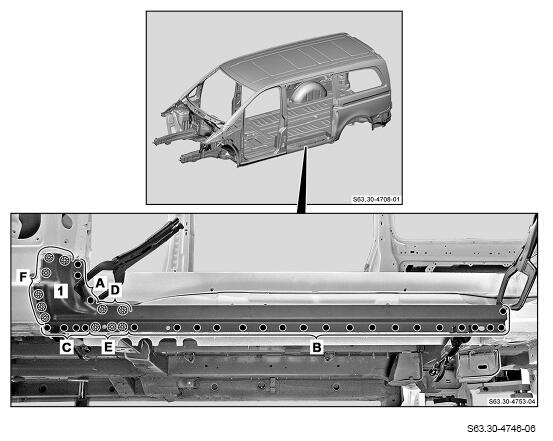

- Install outer sliding door entrance (1), fit and fix in place.
- Outer sliding door entrance (1)
(areas A to C).
- Outer sliding door entrance (1)
(areas D to F).
- Grind inert gas spot welds down flat.
- Clean weld joints.
- Restore surfaces on outer sliding door entrance (1) and smooth.
- Remove shavings and drill chips.
