Inner Left Front Sidewall Partial Install And Weld In - Ar63.10-S-6430-03E

Model 447, 448.7

except code T19 (Sliding door left)

Courtesy of MERCEDES-BENZ USA

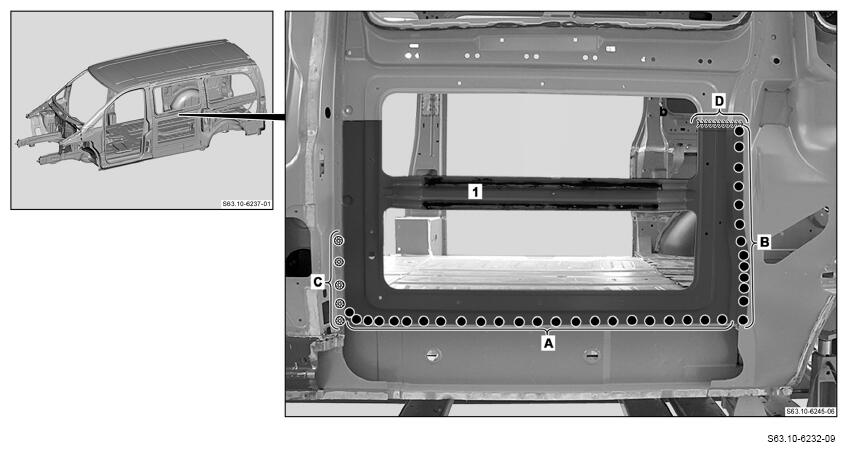

1. Install inner left front side wall (1), fit and fix in place.
2. Inner left front side wall (1) (areas A and B).
3. Inner left front side wall (1) (area C).
4. Inner left front side wall (1) (area D).

   Inert gas weld in intervals and allow to cool down in between. Reduces heat distortion.

   Courtesy of MERCEDES-BENZ USA

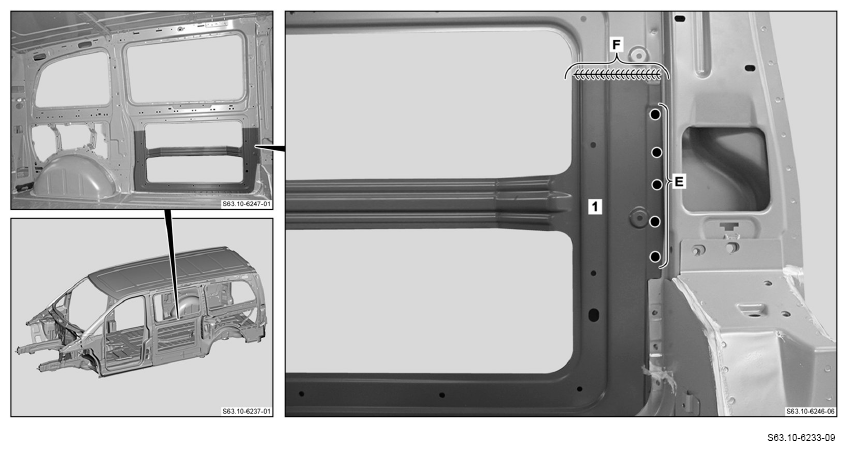

5. Inner left front side wall (1) (area E).
6. Inner left front side wall (1) (area F).

   Inert gas weld in intervals and allow to cool down in between. Reduces heat distortion.

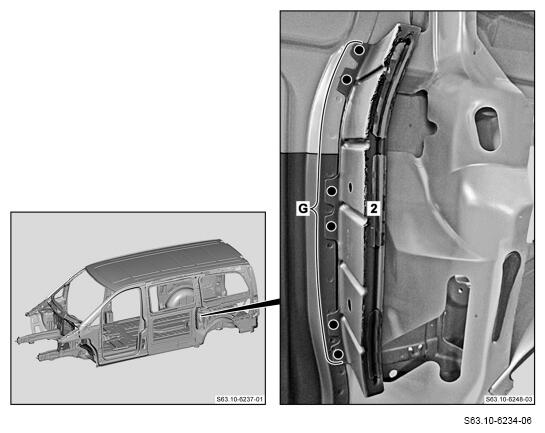

7. Install side wall paneling reinforcement (2), fit and fix in place.
8. Side wall paneling reinforcement (2) (area G).
9. Grind inert gas welds and inert gas spot welds down flat.
10. Clean weld joints.
11. Remove shavings and drill chips.
