Inner C-Pillar Reinforcement Separation - Ar63.20-S-1115-01E

Model 447, 448

Courtesy of MERCEDES-BENZ USA

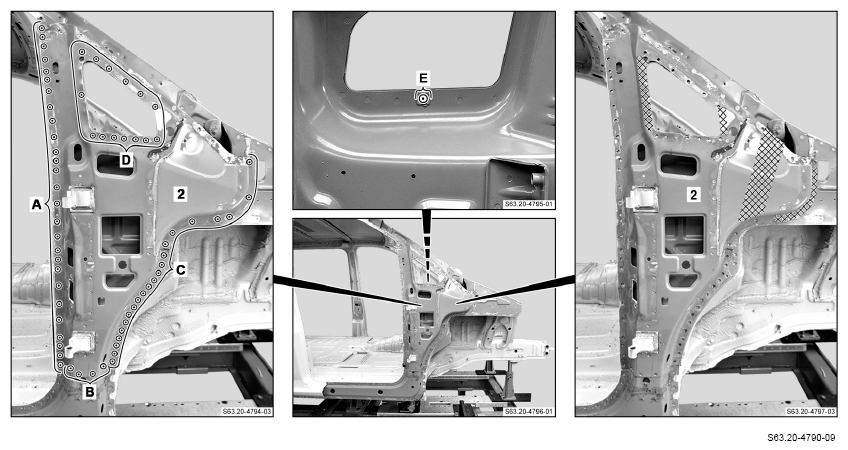

1. Expose spot welds on inner A-pillar reinforcement (2) and cut out (areas A to E).
2. Bend open sheet metal lug (area E).
3. Heat inner A-pillar reinforcement (2) in cross-hatched areas.

   Cross-hatched areas are bonded.

4. Remove damaged inner A-pillar reinforcement (2).
