TAILLAMP/Cover Of D-Pillar Mounting Bolt Installation - Ar63.10-S-0100-05E

Model 447, 448

SIDE WALL

Number Designation Model 447, 448
BA63.10-Z-1001-01KOA Mounting bolt to sidewall Nm 6

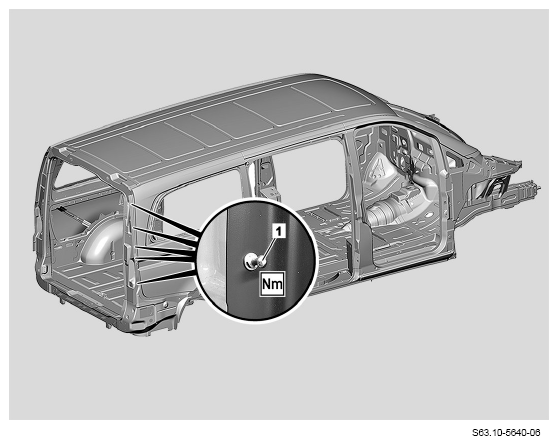

  1. Coat mounting bolts (1) with thread lock.
  2. Screw mounting bolts (1) into blind rivet nut and tighten TORQUE SPECIFICATION .
    G16483415Courtesy of MERCEDES-BENZ USA
