Side Wall Paneling Up To Sliding Door Guide Rail Preparation - Ar63.10-S-5815-02EB

Model 447.605

with code T19 (Sliding door left)

with code W29 (Window fixed behind)

Left side of vehicle

Model 447.605

with code W29 (Window fixed behind)

Right side of vehicle

Model 447.705

with code T19 (Sliding door left)

with code W29 (Window fixed behind)

with code ZK4 (Mixto)

Left side of vehicle

Model 447.705

with code W29 (Window fixed behind)

with code ZK4 (Mixto)

Right side of vehicle

Model 447.815

Right side of vehicle

Model 447.815

with code T19 (Sliding door left)

Left side of vehicle

Model 448.705

with code T19 (Sliding door left)

with code W29 (Window fixed behind)

Left side of vehicle

Model 448.705

with code W29 (Window fixed behind)

Right side of vehicle

Model 448.815

Right side of vehicle

Model 448.815

with code T19 (Sliding door left)

Left side of vehicle

The following steps are shown on the left side of the vehicle and must be accomplished analogously on the right side in the event of damage.

Courtesy of MERCEDES-BENZ USA

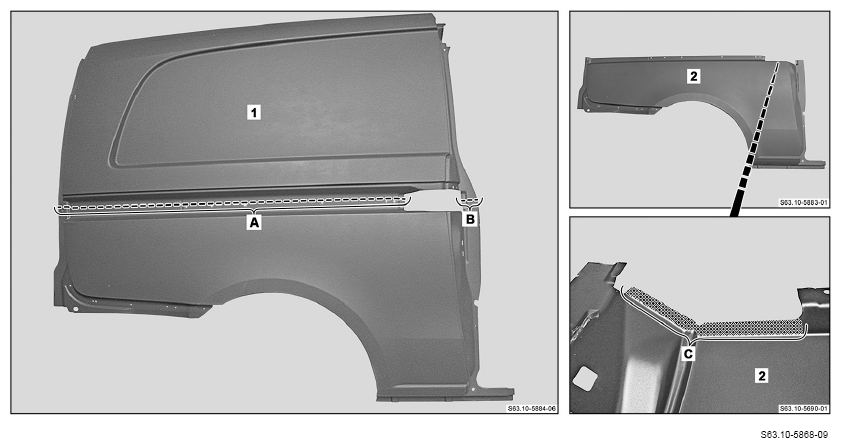

1. Mark connecting points on sidewall paneling (1) and cut (areas A and B).

   Transfer separation points from vehicle.

2. Grind mating surfaces on side wall paneling section (2) down to bare metal in crosshatched areas.
3. Remove shavings and drill chips.
4. Coat insides of spot weld flanges with zinc dust paint.

   Do not coat bonding surface (area C) with zinc dust paint.

   Otherwise there may be adhesion problems.

   Observe pretreatment of bonding surface (area C).

   Courtesy of MERCEDES-BENZ USA

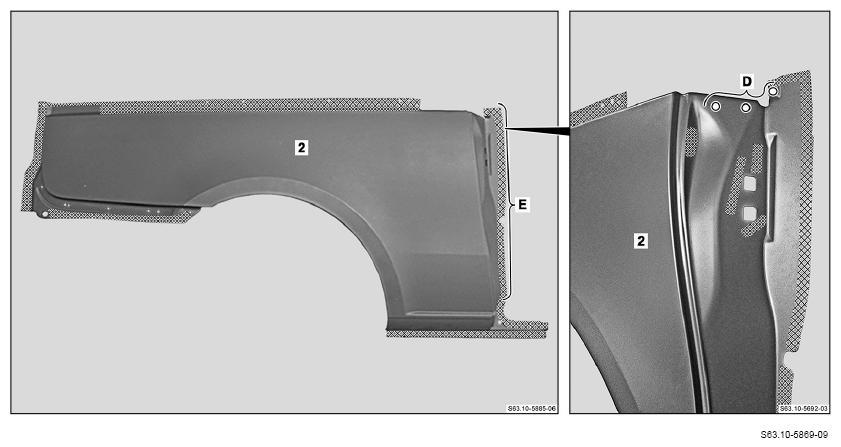

5. Drill holes for MAG welding on side wall paneling section (2) (area D).
6. Grind down mating surfaces to bare metal on sidewall paneling section (2) in crosshatched areas and around the holes (area D).

   Sand down spot weld flanges to bare metal on both sides.

7. Remove shavings and drill chips.
8. Coat insides of spot weld flanges with zinc dust paint.

   Do not coat bonding surface (area E) with zinc dust paint. Otherwise there may be adhesion problems.

   Observe pretreatment of bonding surface (area E).

   Courtesy of MERCEDES-BENZ USA

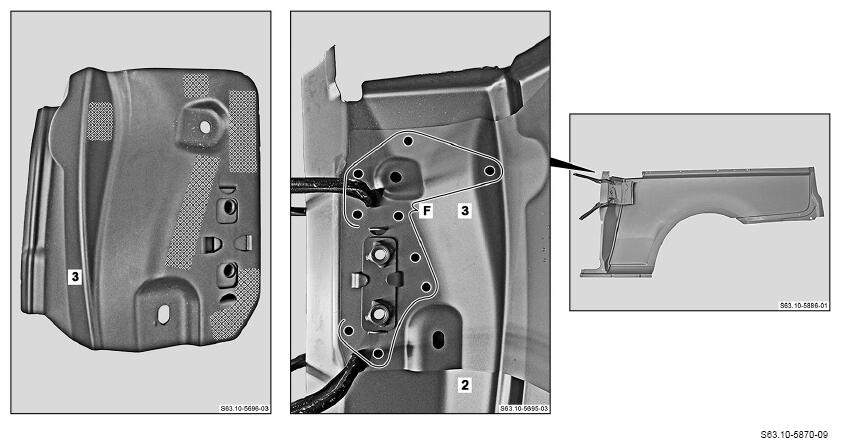

9. Grind mating surfaces on lock striker reinforcement (3) down to bare metal in the crosshatched areas.

   Sand down spot weld flanges to bare metal on both sides.

10. Remove shavings and drill chips.
11. Coat insides of spot weld flanges with zinc dust paint.
12. Install lock striker reinforcement (3) on side wall paneling section (2), fit and fix in place.
13. Lock striker reinforcement (3) (area F).
14. Clean weld joints.
15. Remove shavings and drill chips.
16. Coat insides of spot weld flanges with zinc dust paint (area F)..
