Rear Lower Section Of Side Wall Paneling Prepare For Installation - Ar63.10-S-5665-02E

Model 447.603/605/703/705/813/815, 448

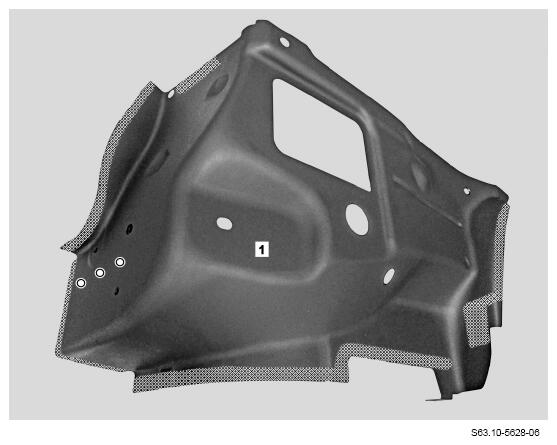

1. Grind mating surfaces down to bare metal on rear sidewall paneling bottom section (1) in crosshatched areas and around the holes.

   Sand down spot weld flanges to bare metal on both sides.

2. Remove shavings and drill chips.
3. Coat insides of spot weld flanges with zinc dust paint.

   Courtesy of MERCEDES-BENZ USA
