Rear Inner Wheel Well Installation - Ar63.10-S-0670-04E

Model 447, 448

Courtesy of MERCEDES-BENZ USA

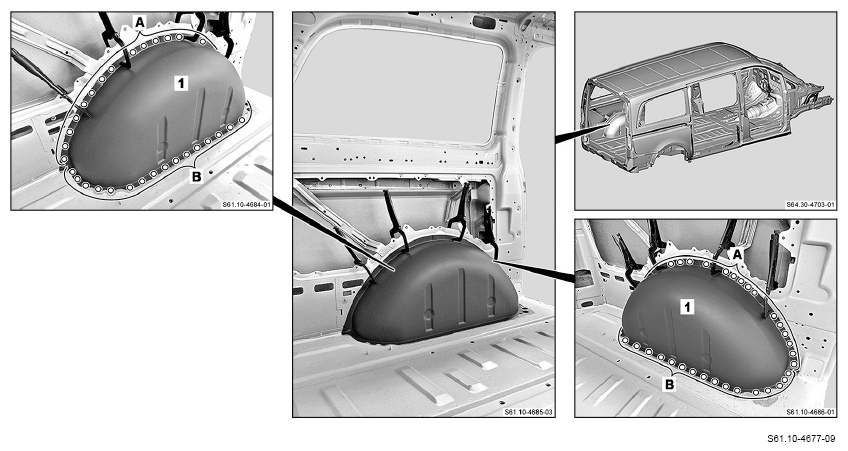

1. Install inner rear wheel well (1), fit and fix in place.
2. Drill rivet holes on inner rear wheel well (1) with Ø 6.5 mm strut (areas A and B).
3. Remove inner rear wheel well (1).

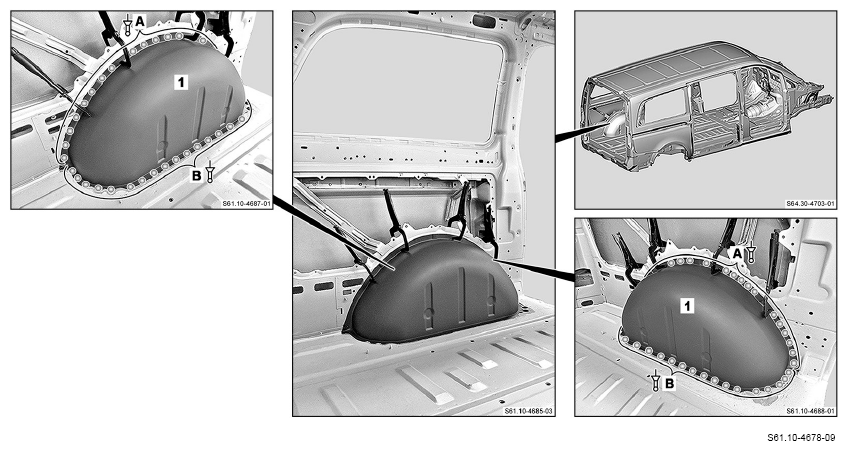

4. Deburr rivet holes on both sides.

   Courtesy of MERCEDES-BENZ USA

5. Coat insides of riveted joint with zinc dust paint.
6. Install inner rear wheel well (1), fit and fix in place.
7. Rivet inner rear wheel well (1) with Ø 6.4x14 blind rivets (areas A and B).
