Make Hole For End Stop Of Magnetic Door Holder - Ar63.10-S-0126-04E

Model 447.6/7

with code W54 (2-wing rear-end door, 270 degrees)

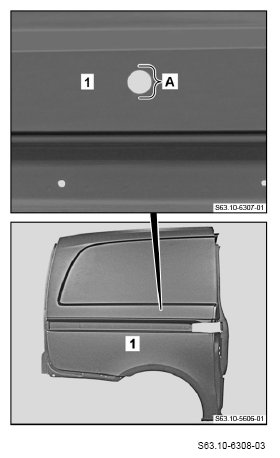

1. Mark hole (area A) on side wall paneling (1).

   Transfer dimension for hole (area A) from undamaged side of vehicle.

2. Drill hole (area A) in side wall paneling (1) with ø 26 mm bit.
3. Deburr hole (area) on side wall paneling (1) on both sides.
4. Remove drilling chips.

   Courtesy of MERCEDES-BENZ USA
