Lower Section Of Sidewall Paneling With C-Pillar Reinforcement Prepare For Installation - Ar63.10-S-0060-02E

Model 447, 448

Right side of vehicle

Model 447, 448

with code T19 (Sliding door left)

Left side of vehicle

Refer to the superordinate service document for further information. Observe safety information in the superordinate service document.

The next steps are shown on component parts for model 447 with code T19 (left sliding door) on the left side of the vehicle and must be performed in the same way in the event of damage to the right side of the vehicle.

Courtesy of MERCEDES-BENZ USA

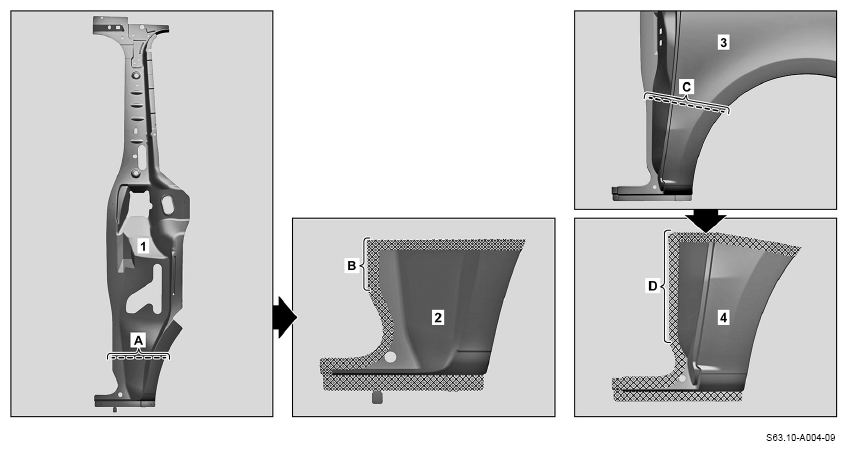

1. Mark separating point on the C-pillar reinforcement (1) (area A).

   Transfer separation point from vehicle.

2. Cut separating point on the C-pillar reinforcement (1) (area A).
3. Grind mating surfaces on C-pillar reinforcement section (2) down to bare metal in the cross-hatched area.

   Sand down spot weld flanges to bare metal on both sides.

4. Remove shavings.
5. Coat insides of spot weld flanges with zinc dust paint.

   Do not coat bonding surface with zinc dust paint (area B).

   Otherwise there may be adhesion problems.

6. Mark separating point on the sidewall paneling (3) (area C).

   Transfer separation point from vehicle.

7. Cut separating point on the sidewall paneling (3) (area C).
8. Grind mating surfaces on sidewall paneling section (4) down to bare metal in cross-hatched areas.

   Sand down spot weld flanges to bare metal on both sides.

9. Remove shavings.
10. Coat insides of spot weld flanges with zinc dust paint.

    Do not coat bonding surface (area D) with zinc dust paint.

    Otherwise there may be adhesion problems.
