Cut Off Sidewall Paneling With Window Cutout - Ar63.10-S-0126-01E

Model 447.603

with code T19 (Sliding door left)

with code W29 (Window fixed behind)

Left side of vehicle

Model 447.603

with code W29 (Window fixed behind)

Right side of vehicle

Model 447.703

with code T19 (Sliding door left)

with code W29 (Window fixed behind)

with code ZK4 (Mixto)

Left side of vehicle

Model 447.703

with code W29 (Window fixed behind)

with code ZK4 (Mixto)

Right side of vehicle

Model 447.813

Right side of vehicle

Model 447.813

with code T19 (Sliding door left)

Left side of vehicle

Model 448.813

Right side of vehicle

Model 448.813

with code T19 (Sliding door left)

Left side of vehicle

The following steps are shown on the left side of the vehicle and must be accomplished analogously on the right side in the event of damage.

Courtesy of MERCEDES-BENZ USA

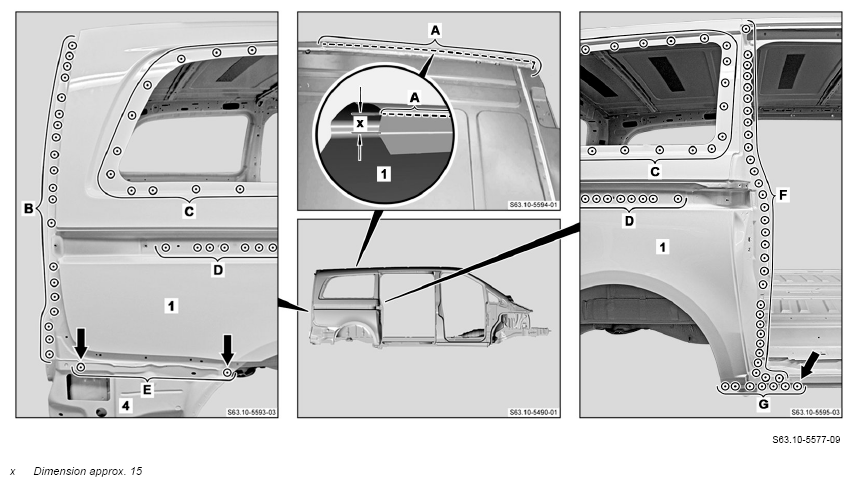

1. Mark separating point on side wall paneling (1) and cut (area A).

   Do not cut too deeply.

   Otherwise the components below can be damaged and weakened.

2. Expose spot welds on side wall paneling (1) and cut out (areas B to G).

   Cut out spot welds (arrows) through two panel thicknesses.

   Courtesy of MERCEDES-BENZ USA

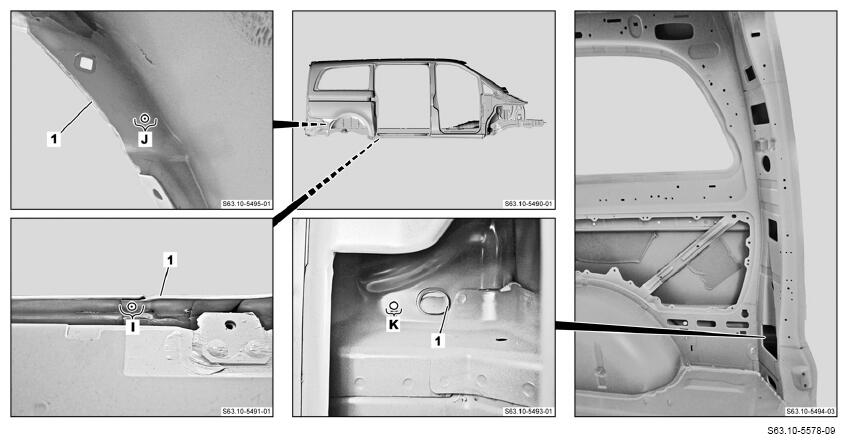

3. Expose spot welds on side wall paneling (1) and cut out (areas I and J).
4. Expose spot weld and drill out (area K).

   Courtesy of MERCEDES-BENZ USA

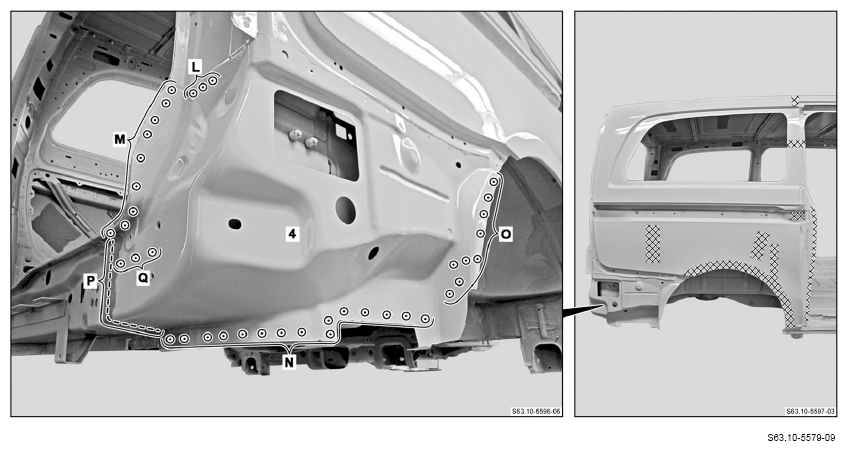

5. Expose spot welds on rear side wall paneling bottom section (4) and cut out (areas L to O).
6. Expose MAG spot welds on rear side wall paneling bottom section (4) and cut out (area Q).
7. Cut inert gas welds on rear side wall paneling bottom section (4 (area P).
8. Heat sidewall paneling (1) in crosshatched areas.

   Crosshatched areas are bonded with adhesive.

9. Remove damaged side wall paneling (1).

   Courtesy of MERCEDES-BENZ USA

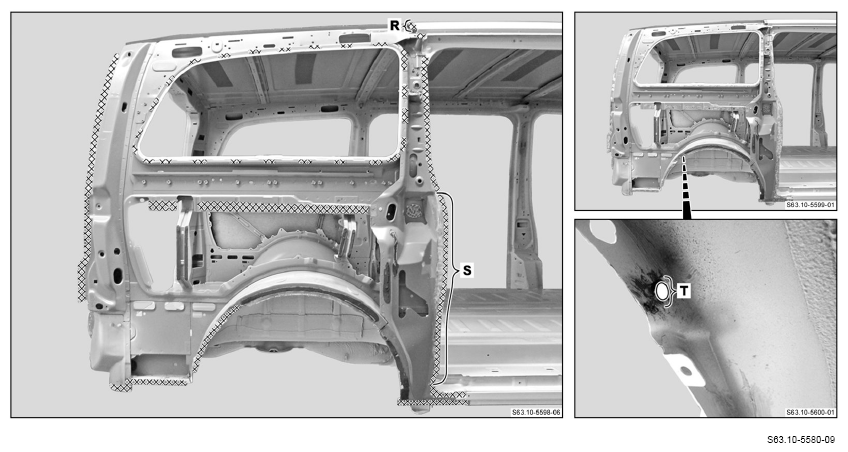

10. Grind mating surfaces down to bare metal in crosshatched areas and around hole (area T).

    Sand down spot weld flanges to bare metal on both sides.

11. Remove shavings and drill chips.
12. Coat insides of spot weld flanges with zinc dust paint.

    Do not coat bonding surfaces with zinc dust paint (areas R and S).

    Otherwise there may be adhesion problems.

    Observe pretreatment of bonding surfaces (areas R and S).

    Courtesy of MERCEDES-BENZ USA

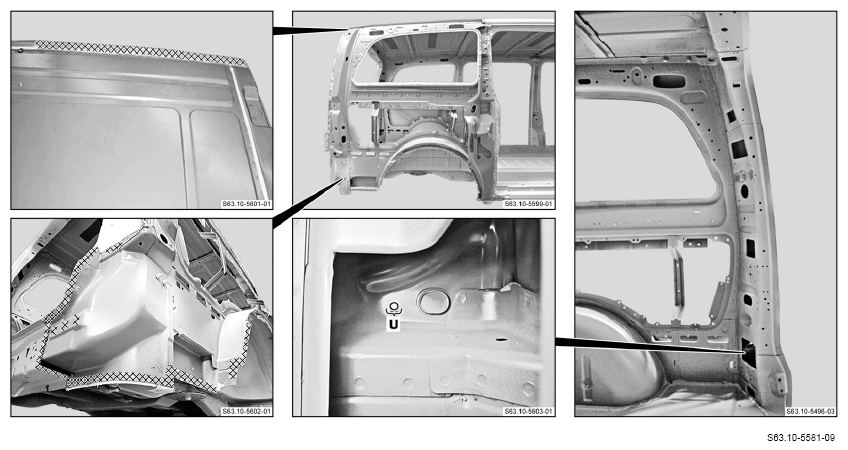

13. Grind mating surfaces down to bare metal in crosshatched areas and around hole (area U).

    Sand down spot weld flanges to bare metal on both sides.

14. Remove shavings and drill chips.
15. Coat insides of spot weld flanges with zinc dust paint.
