Cut Away Left Side Wall Paneling With Window Cutout - Ar63.10-S-0120-01EB

000 588 15 84 00 Heat gun

WS54.00-P-0125B

Model 447.605

with code W16 (Window front left, fixed, in sidewall/sliding door)

with code W29 (Window fixed behind)

except code T19 (Sliding door left)

Model 447.705

with code W16 (Window front left, fixed, in sidewall/sliding door)

with code W29 (Window fixed behind)

except code T19 (Sliding door left)

Model 447.705

with code W16 (Window front left, fixed, in sidewall/sliding door)

with code W32 (Rear passenger compartment electric pop-out windows)

except code T19 (Sliding door left)

Model 447.705

with code W18 (Sliding window front left in side/sliding door)

with code W29 (Window fixed behind)

except code T19 (Sliding door left)

Model 447.705

with code W18 (Sliding window front left in side/sliding door)

with code W32 (Rear passenger compartment electric pop-out windows)

except code T19 (Sliding door left)

Model 447.815

with code W16 (Window front left, fixed, in sidewall/sliding door)

with code W29 (Window fixed behind)

except code T19 (Sliding door left)

Model 447.815

with code W16 (Window front left, fixed, in sidewall/sliding door)

with code W32 (Rear passenger compartment electric pop-out windows)

except code T19 (Sliding door left)

Model 448.705

with code W16 (Window front left, fixed, in sidewall/sliding door)

with code W29 (Window fixed behind)

except code T19 (Sliding door left)

Model 448.705

with code W16 (Window front left, fixed, in sidewall/sliding door)

with code W32 (Rear passenger compartment electric pop-out windows)

except code T19 (Sliding door left)

19.02.2020

First infoblock, repair materials and WS reference, added.

Number	Designation	Order number
BR00.45-Z-1001-07A	Zinc dust paint suitable for spot welding	A 000 986 34 42

Refer to the superordinate service document for further information.

Safety information in superordinate service document must be observed.

Courtesy of MERCEDES-BENZ USA

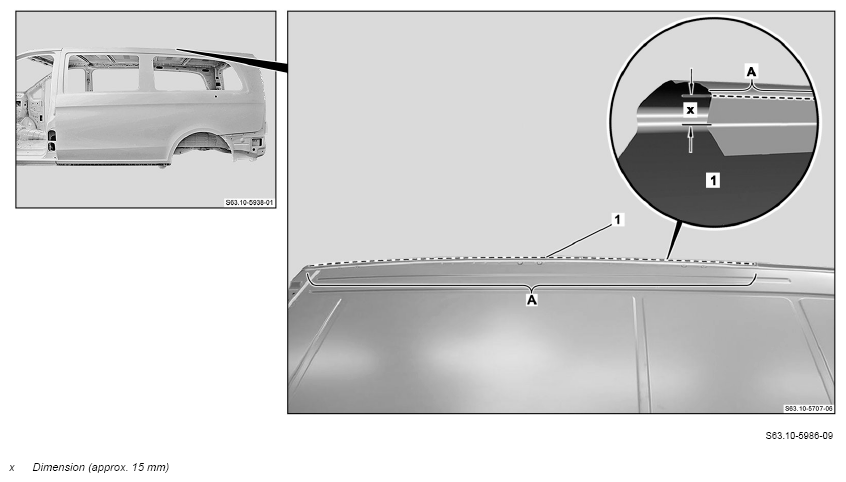

1. Mark separating point on sidewall paneling (1) (area A).
2. Cut separating point on sidewall paneling (1) (area A).

   Do not cut too deeply.

   Otherwise the components below can be damaged and weakened.

   Courtesy of MERCEDES-BENZ USA

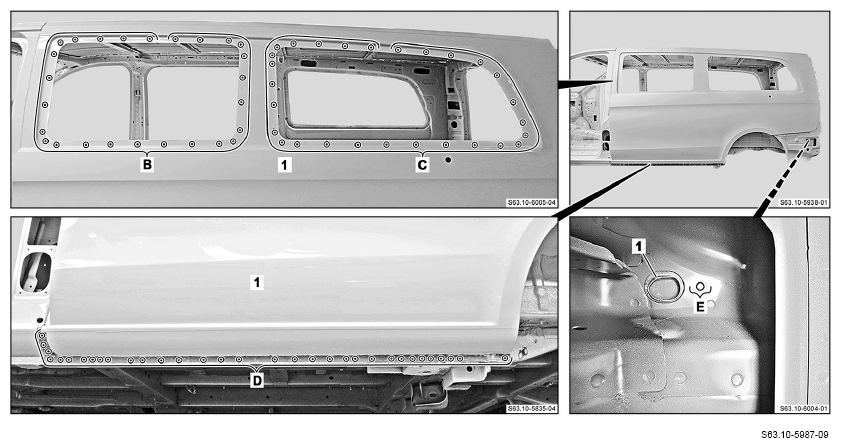

3. Expose spot welds on sidewall paneling (1) (areas B to D).
4. Cut out spot welds on sidewall paneling (1) (areas B to D).
5. Expose spot weld (area E).
6. Drill out spot weld (area E).

   Courtesy of MERCEDES-BENZ USA

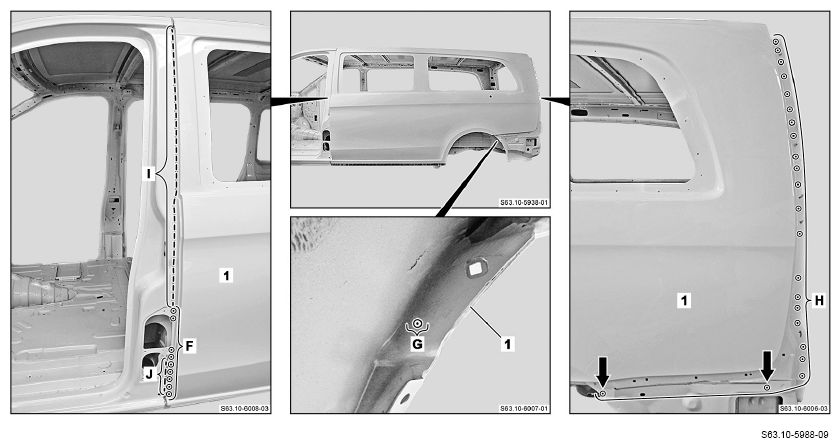

7. Expose spot welds on the sidewall paneling (1) (areas F to H).
8. Cut out spot welds on the sidewall paneling (1) (areas F to H).

   Cut out spot welds (arrows) through two panel thicknesses.

9. Expose laser weld seams on the sidewall paneling (1) (areas I and J).
10. Cut laser weld seams on the sidewall paneling (1) (areas I and J).

    Courtesy of MERCEDES-BENZ USA

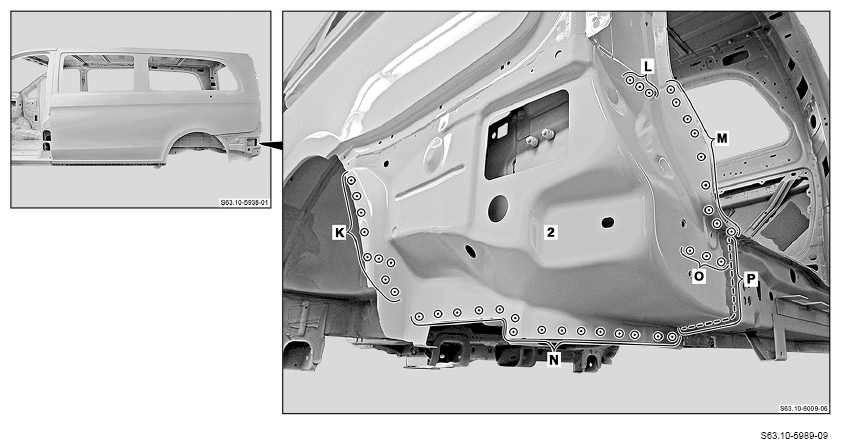

11. Expose spot welds on the rear sidewall paneling lower part (2) (areas K to N).
12. Cut out spot welds on the rear sidewall paneling lower part (2) (areas K to N).
13. Expose MAG spot welds on the rear sidewall paneling lower part (2) (area O).
14. Cut out MAG spot welds on the rear sidewall paneling lower part (2) (area O).
15. Cut shielding gas welds on the rear sidewall paneling lower part (2) (area P).

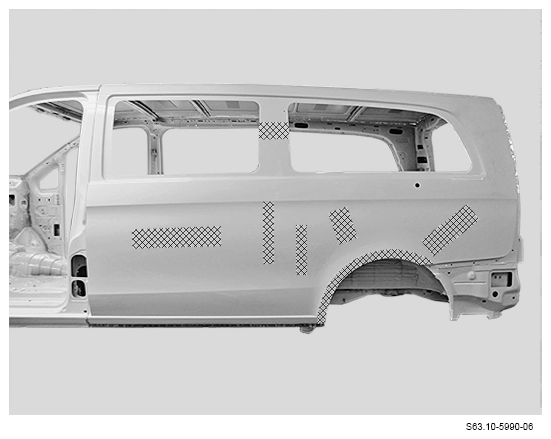

16. Heat sidewall paneling (1) in cross-hatched areas.

    Cross-hatched areas are bonded with adhesive.

17. Remove damaged side wall paneling (1).

    Courtesy of MERCEDES-BENZ USA

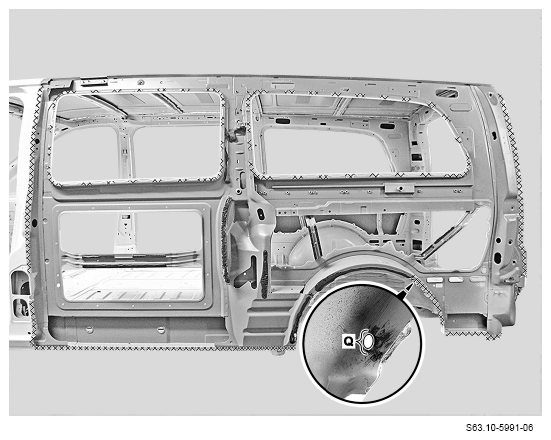

18. Grind mating surfaces down to bare metal in crosshatched areas and around hole (area Q).

    Grind spot weld flanges down to bare metal on both sides.

19. Remove shavings and drill chips.
20. Apply zinc dust paint to insides of spot weld flanges.

    Courtesy of MERCEDES-BENZ USA

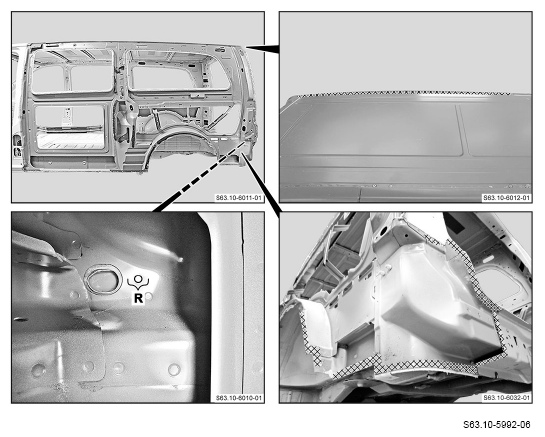

21. Grind mating surfaces down to bare metal in crosshatched areas and around hole (area R).

    Grind spot weld flanges down to bare metal on both sides.

22. Remove shavings and drill chips.
23. Apply zinc dust paint to insides of spot weld flanges.
