Install And Weld In Corner Paneling Assembly - Ar64.30-S-5700-03E

Model 447, 448

with code W65 (Tailgate)

Model 447, 448

with code W68 (EASY-PACK-tailgate)

Fig 1: Identifying Portal Frame (129 589 03 23 00)

Courtesy of MERCEDES-BENZ USA

1. Install corner pillar (1), side corner pillar (2), inner corner pillar (3) and bottom corner pillar reinforcement, fit and fasten with straightening tool and portal frame.

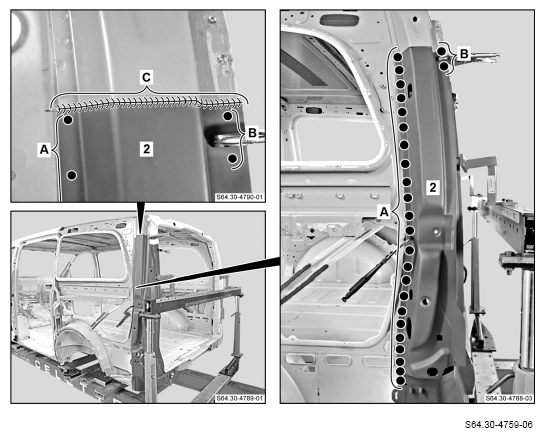

2. Side corner pillar (2) (areas A and B).
3. Side corner pillar (2) (area C).

   Inert gas weld in intervals and allow to cool down in between. Reduces heat distortion.

   Courtesy of MERCEDES-BENZ USA

4. Level inert gas weld at contact surface (area C).
5. Remove shavings and drill chips.
6. Remove corner pillar (1) and bottom corner pillar reinforcement.

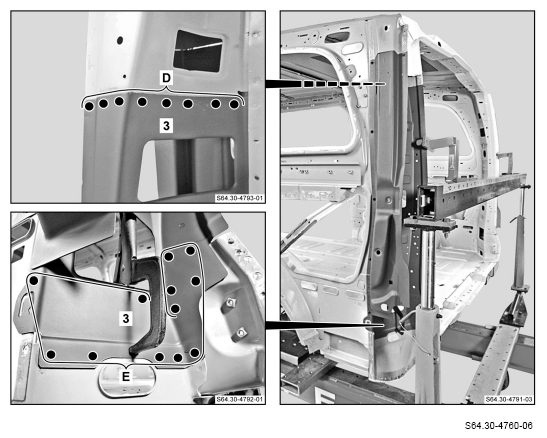

7. Inner corner pillar (3) (areas D and E).

   Courtesy of MERCEDES-BENZ USA

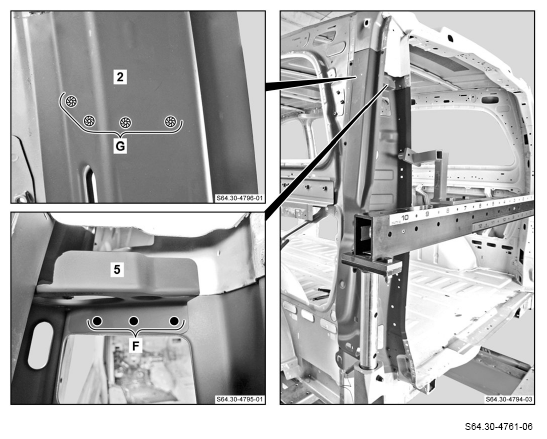

8. Install reinforcement (5), fit and fix in place.
9. Reinforcement (5) (area F).
10. Side corner pillar (2) (area G).
11. Clean weld joints (area F).
12. Coat connecting flange with zinc dust paint (area F).

    Courtesy of MERCEDES-BENZ USA

    Courtesy of MERCEDES-BENZ USA

13. Install corner pillar (1), bottom corner pillar reinforcement, fit and fasten with straightening tool and portal frame.

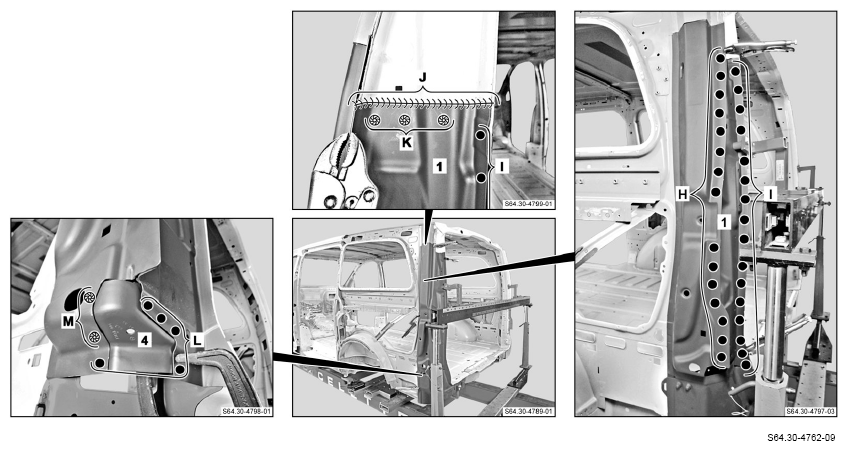

14. Corner pillar (1) (areas H and I).
15. Corner pillar (1) (area J).

    Inert gas weld in intervals and allow to cool down in between. Reduces heat distortion.

16. Corner pillar (1) (area K).
17. Remove bottom corner pillar reinforcement.
18. Install connecting panel (4), fit and fix in place.
19. Connecting panel (4) (area L).
20. Connecting panel (4) (area M).
21. Grind inert gas weld and insert gas spot welds down flat.
22. Clean weld joints.
23. Finish surface on corner pillar (1) and smooth.
24. Remove shavings and drill chips.
25. Coat welding areas no longer accessible after installing bottom corner pillar paneling and side wall paneling and coat with zinc dust paint.
