Wiring Diagram For Adaptive Brake (ABR) - PE42.47-S-2000-97VVB
Model 447.6 except code M8E (Electric motor 85 kW/battery 60 kWh (usable)) except code ME0 (Electric motor 85 kW) except code XM0 (Facelift) except code XM7 (MOPF II) except code ZL3 (National version for Latin America) N30/4
Model 447.7 except code M7E (Electric motor 150 kW/battery 60 kWh (usable)) except code ME0 (Electric motor 85 kW) except code ME4 (Electric motor 145 kW) except code XM0 (Facelift) except code XM7 (MOPF II) except code ZL3 (National version for Latin America) N30/4
| Code: | Designation: | Position: |
|---|---|---|

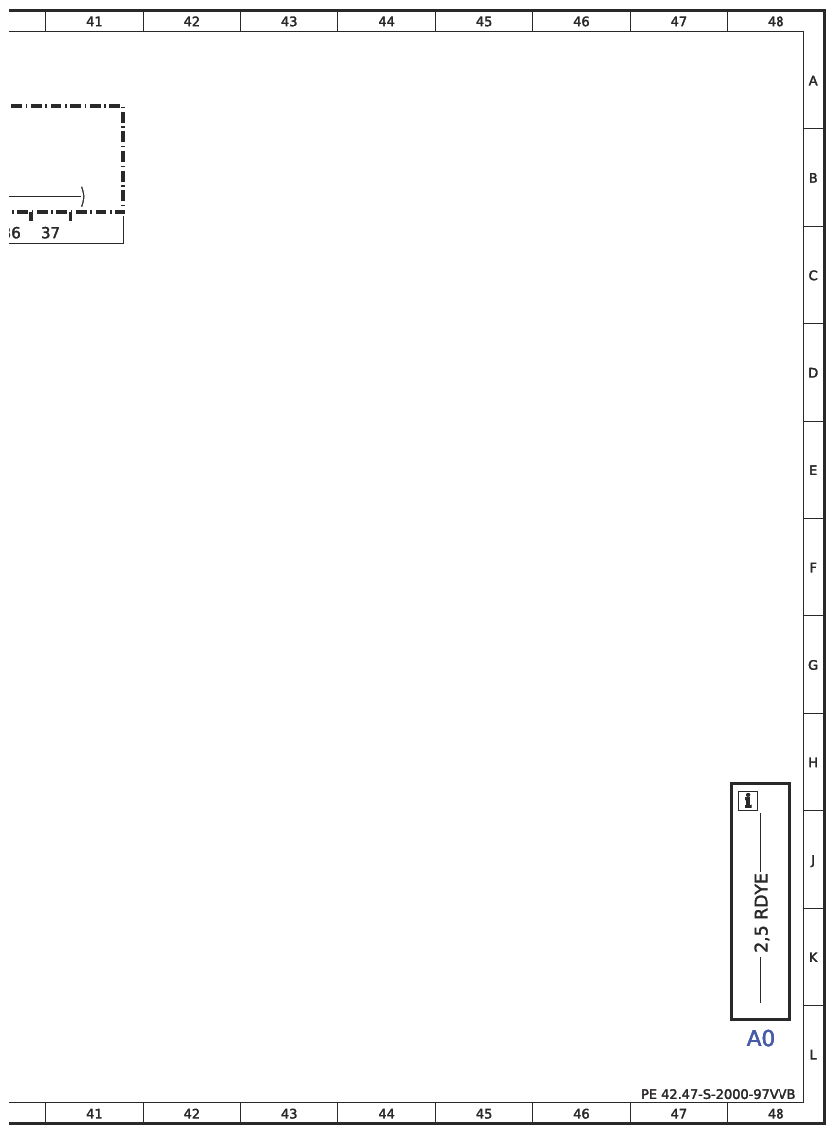

| A0 | Color code key | 48L |
| CAN E | Chassis CAN | 16K |
| K40/10 | Engine compartment fuse and relay module | 9L |
| K40/10 | Engine compartment fuse and relay module | 5L |
| K40/10 | Engine compartment fuse and relay module | 13L |
| K40/10f204 | Fuse 204 | 8L |
| K40/10f218 | Fuse 218 | 4L |
| K40/10f230 | Fuse 230 | 12L |
| K40/10f237 | Fuse 237 | 2L |

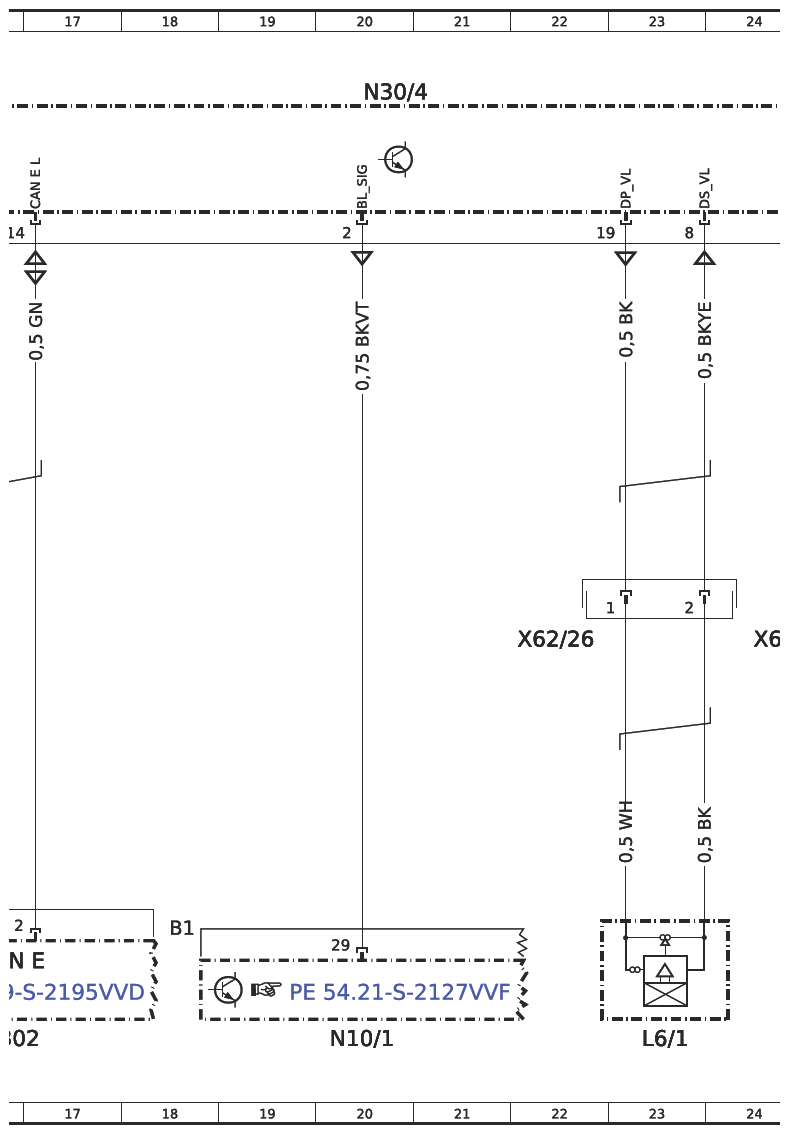

| L6/1 | Left front rpm sensor | 23L |

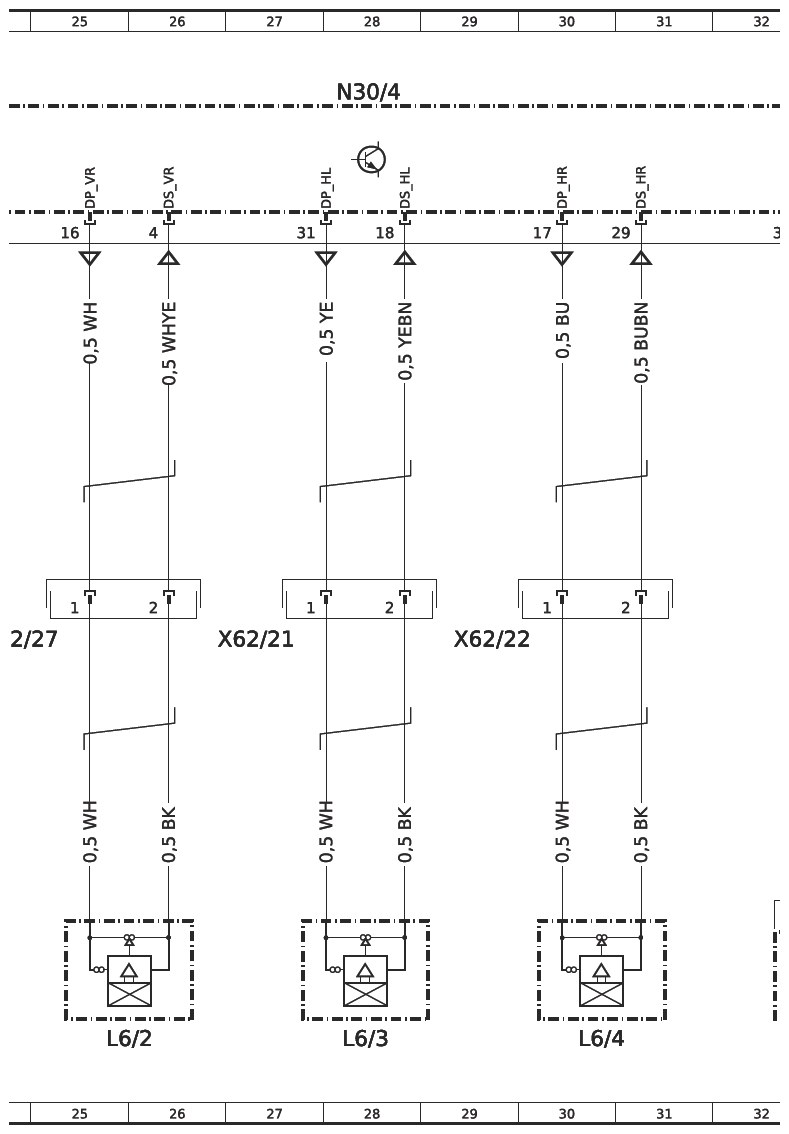

| L6/2 | Right front rpm sensor | 25L |
| L6/3 | Left rear rpm sensor | 28L |
| L6/4 | Right rear rpm sensor | 30L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 20L |
| N30/4 | Electronic Stability Program (ESP) control unit | 4A |
| N30/4 | Electronic Stability Program (ESP) control unit | 12A |
| N30/4 | Electronic Stability Program (ESP) control unit | 20A |
| N30/4 | Electronic Stability Program (ESP) control unit | 28A |
| N30/4 | Electronic Stability Program (ESP) control unit | 36A |

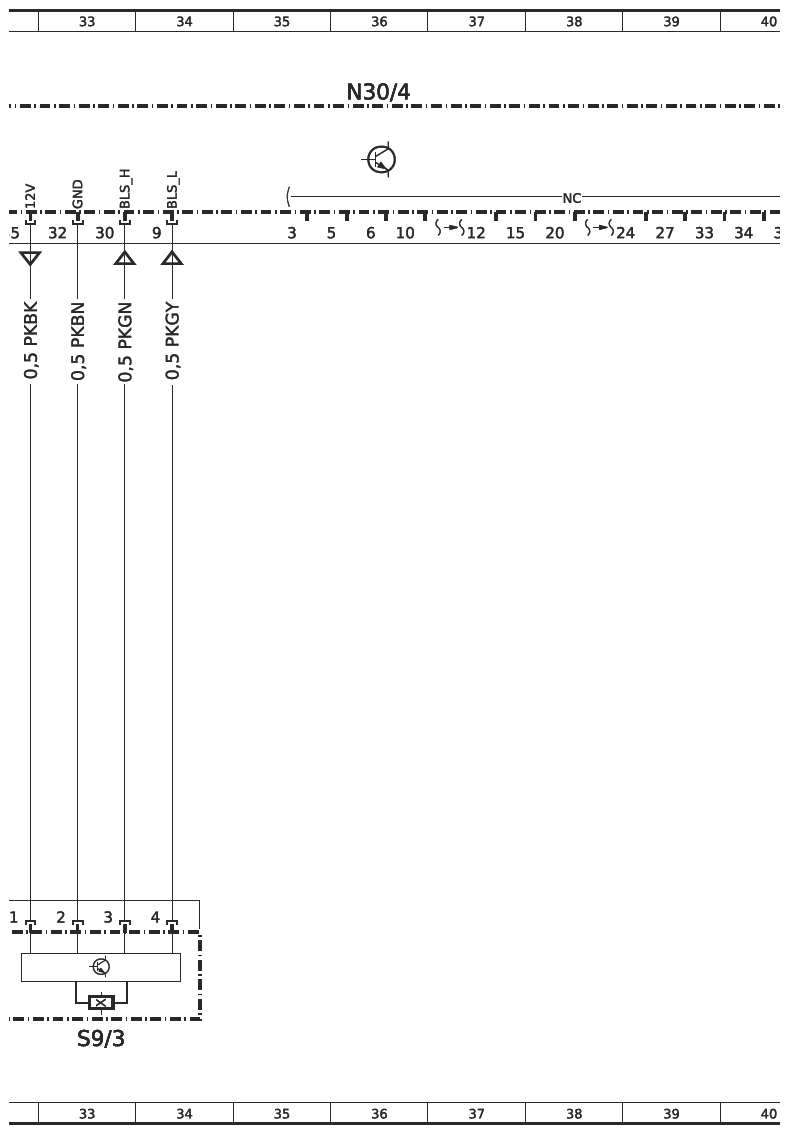

| S9/3 | Stop lamp switch | 33L |

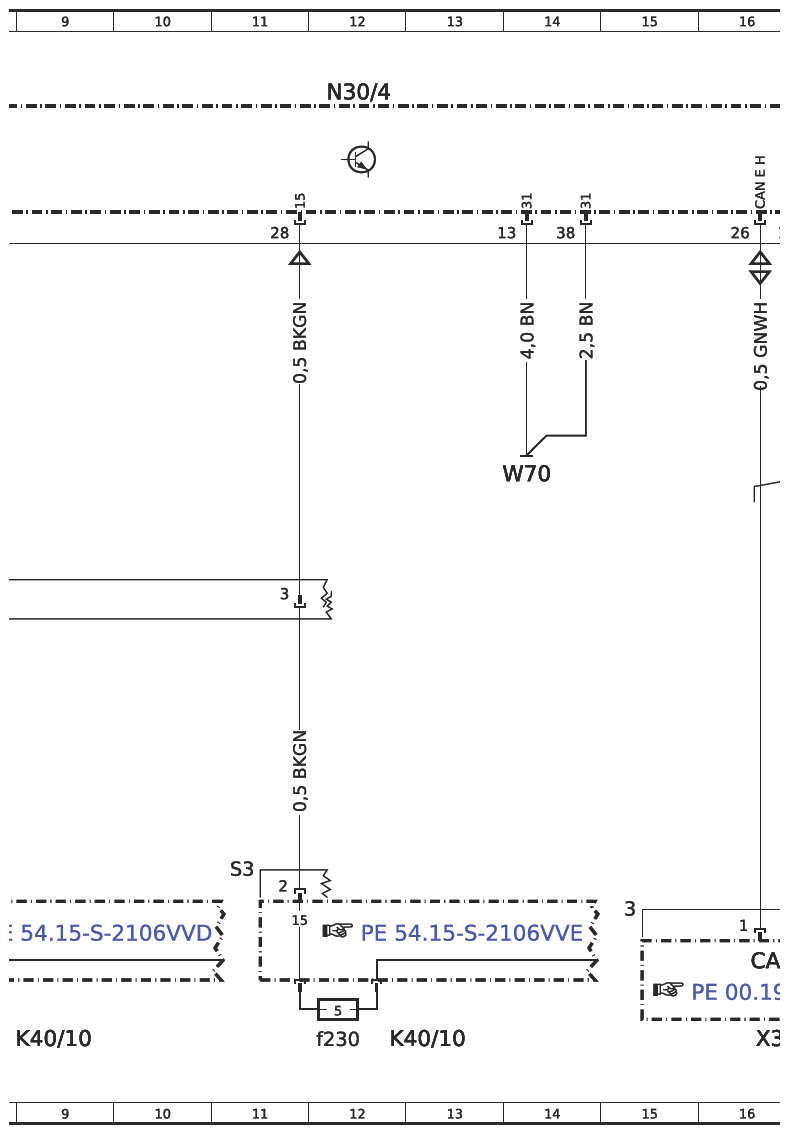

| W70 | Electronic Stability Program ground point | 14E |

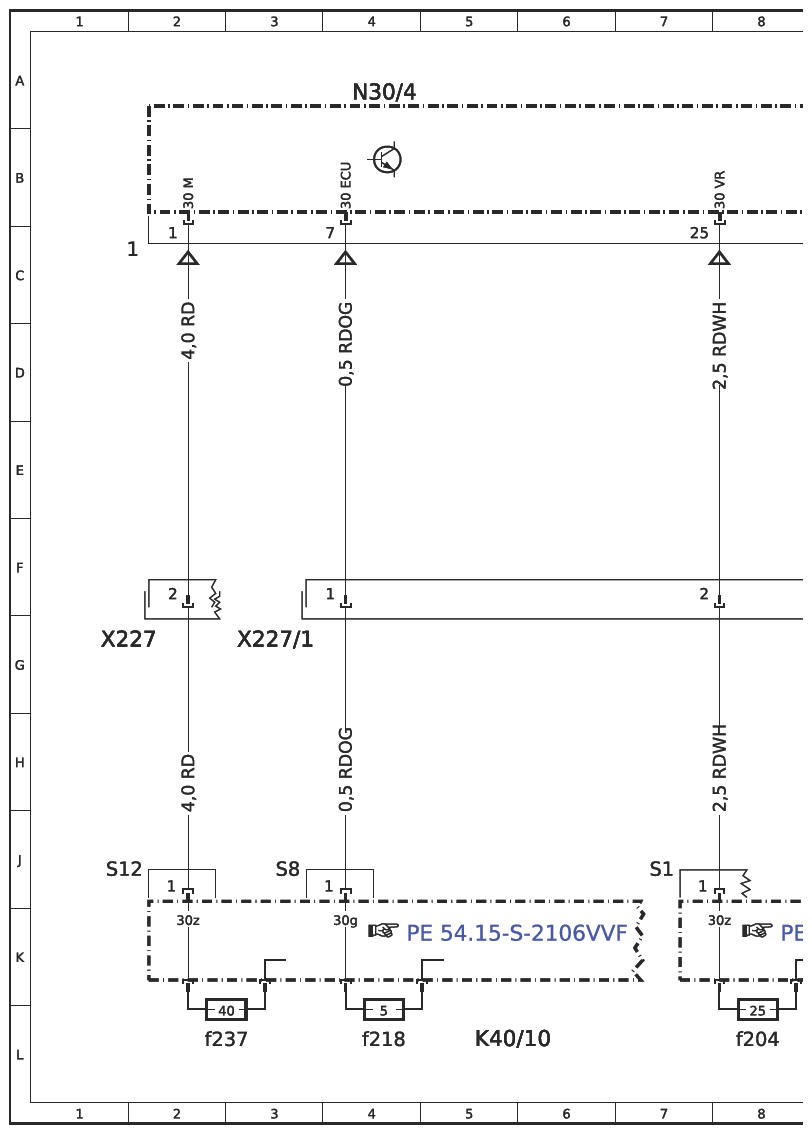

| X227 | Main wiring harness/fuse and relay module electrical connector 1 | 2G |
| X227/1 | Main wiring harness/fuse and relay module electrical connector 2 | 3G |
| X302 | Chassis CAN (CAN E) potential distributor electrical connector | 16L |
| X62/21 | Left rear rpm sensor electrical connector | 27G |
| X62/22 | Right rear rpm sensor electrical connector | 29G |
| X62/26 | Left front rpm sensor electrical connector | 22G |
| X62/27 | Right front rpm sensor electrical connector | 24G |
