(Wiring Diagram For Electronic Stability Program (ESP(R)) - PE42.45-S-2201-97VMA)
Model 447.6/7 with code ME0 (Electric motor 85 kW) except code XM7 (MOPF II) N30/4
| Code: | Designation: | Position: |
|---|---|---|

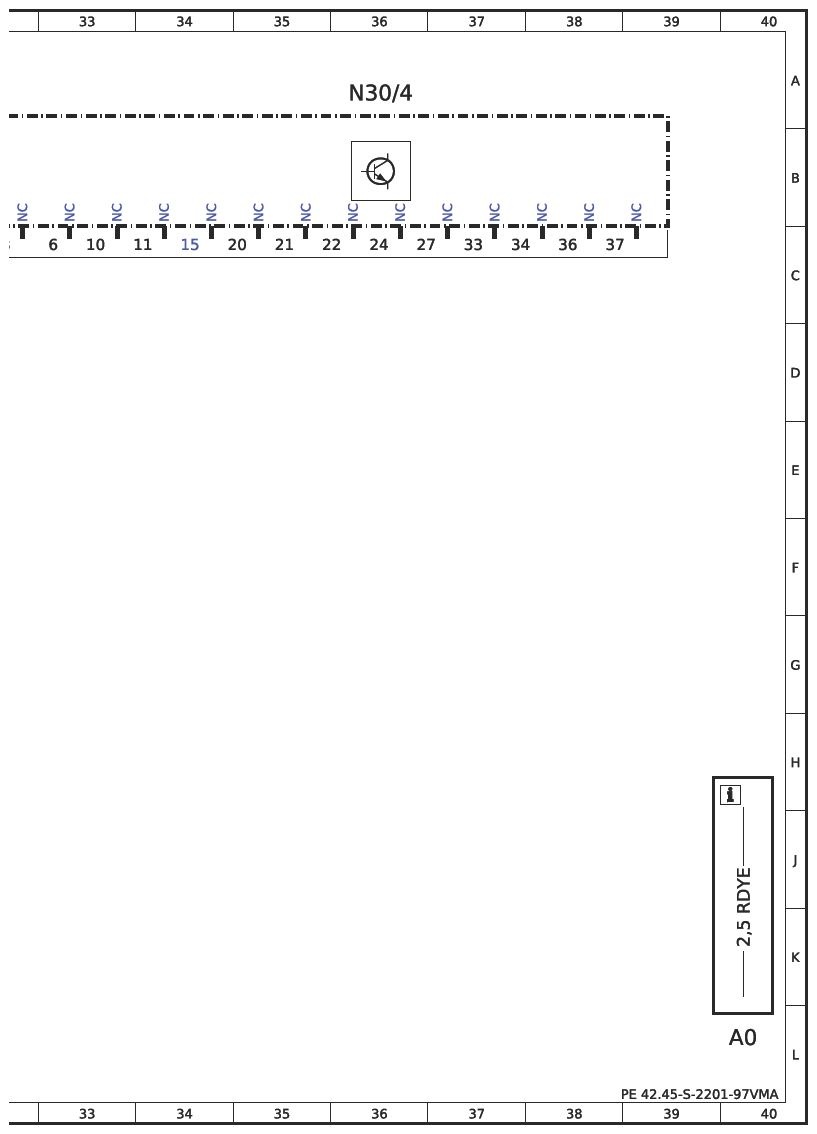

| A0 | Color code key | 40L |
| B150 | ESP® control unit brake vacuum sensor | 31L |

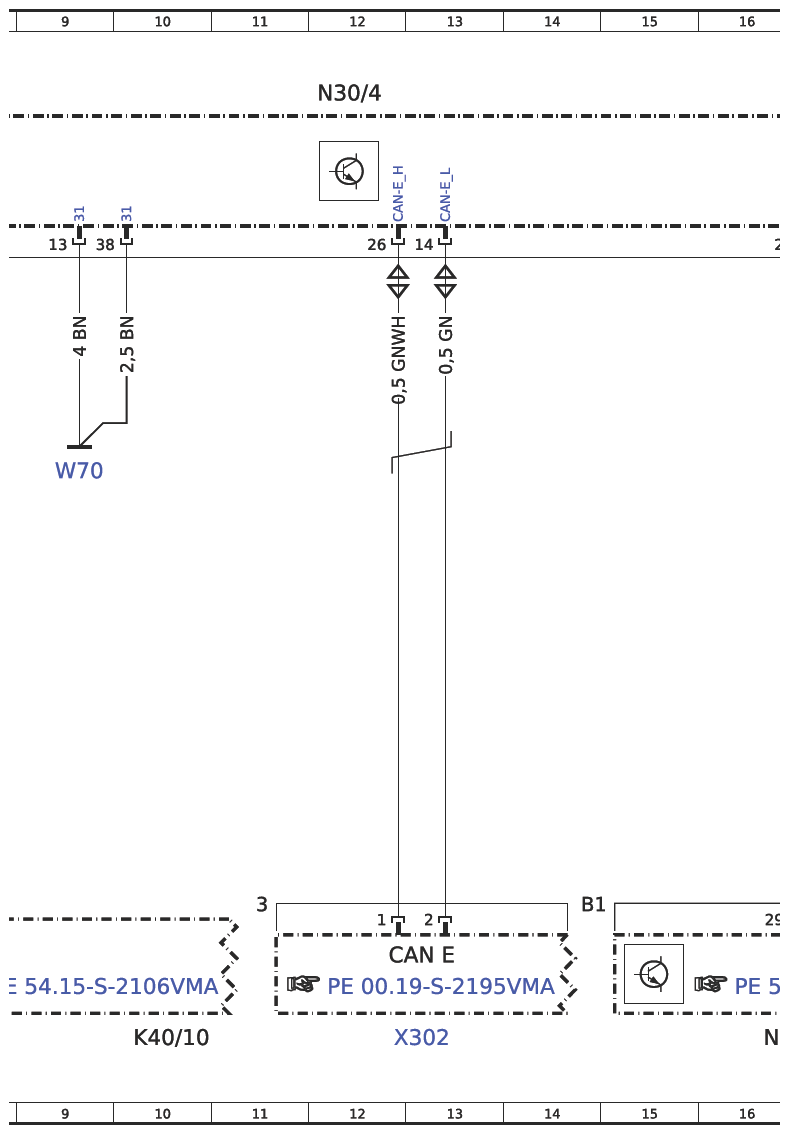

| CAN E | Chassis CAN | 13K |
| K40/10 | Engine compartment fuse and relay module | 2L |
| K40/10 | Engine compartment fuse and relay module | 10L |
| K40/10f204 | Fuse 204 | 6K |
| K40/10f218 | Fuse 218 | 4K |
| K40/10f230 | Fuse 230 | 7K |
| K40/10f237 | Fuse 237 | 2K |

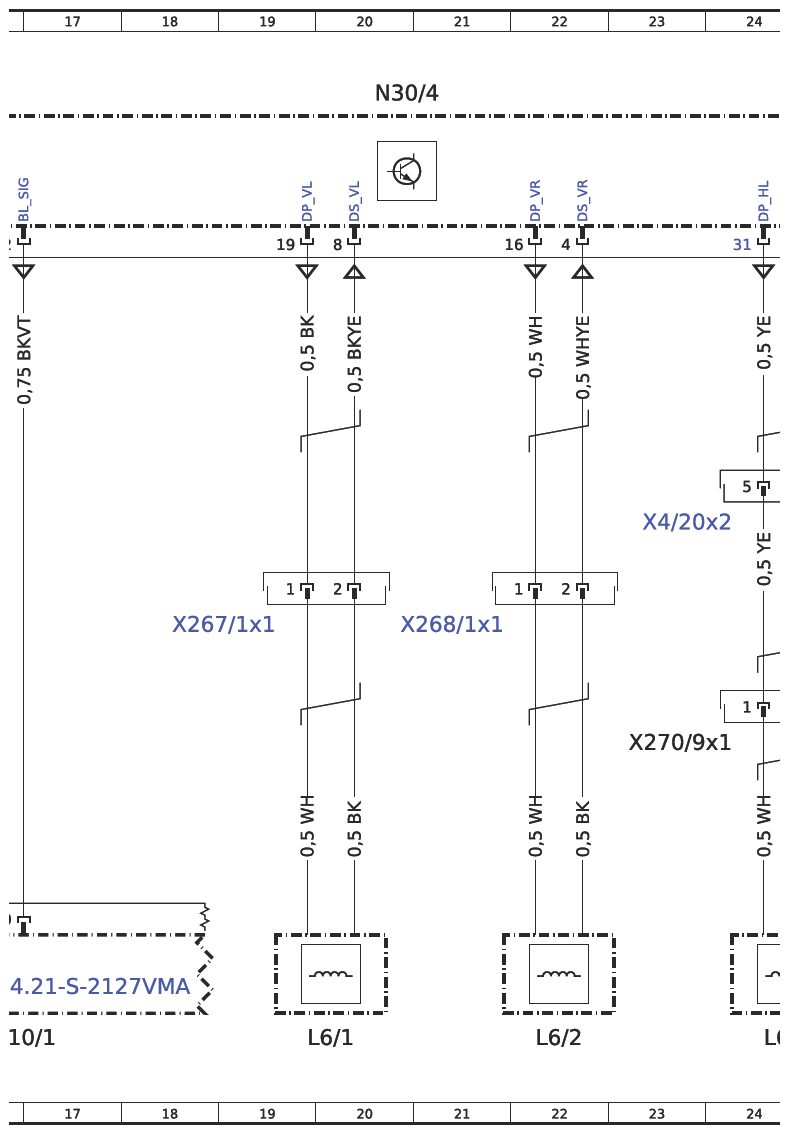

| L6/1 | Left front axle rpm sensor | 20L |
| L6/2 | Right front axle rpm sensor | 22L |
| L6/3 | Left rear axle rpm sensor | 24L |
| L6/4 | Right rear axle rpm sensor | 27L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 16L |

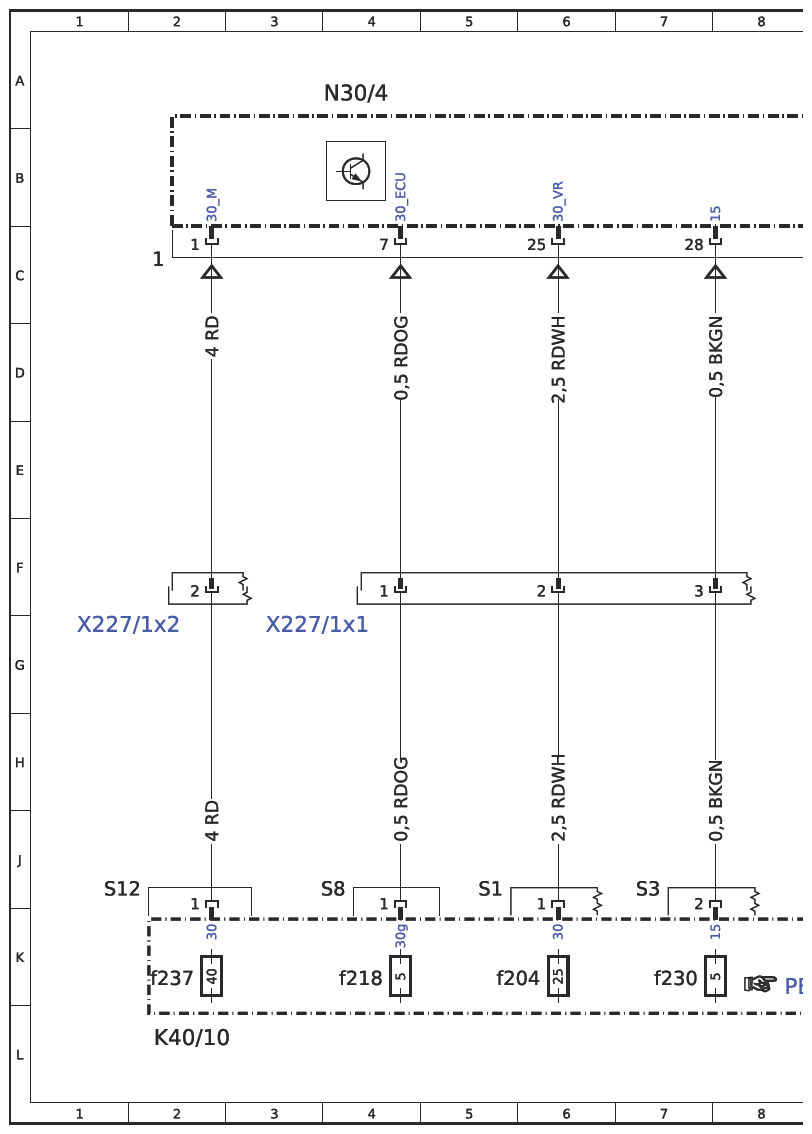

| N30/4 | Electronic Stability Program (ESP) control unit | 4A |
| N30/4 | Electronic Stability Program (ESP) control unit | 12A |
| N30/4 | Electronic Stability Program (ESP) control unit | 20A |
| N30/4 | Electronic Stability Program (ESP) control unit | 27A |
| N30/4 | Electronic Stability Program (ESP) control unit | 36A |

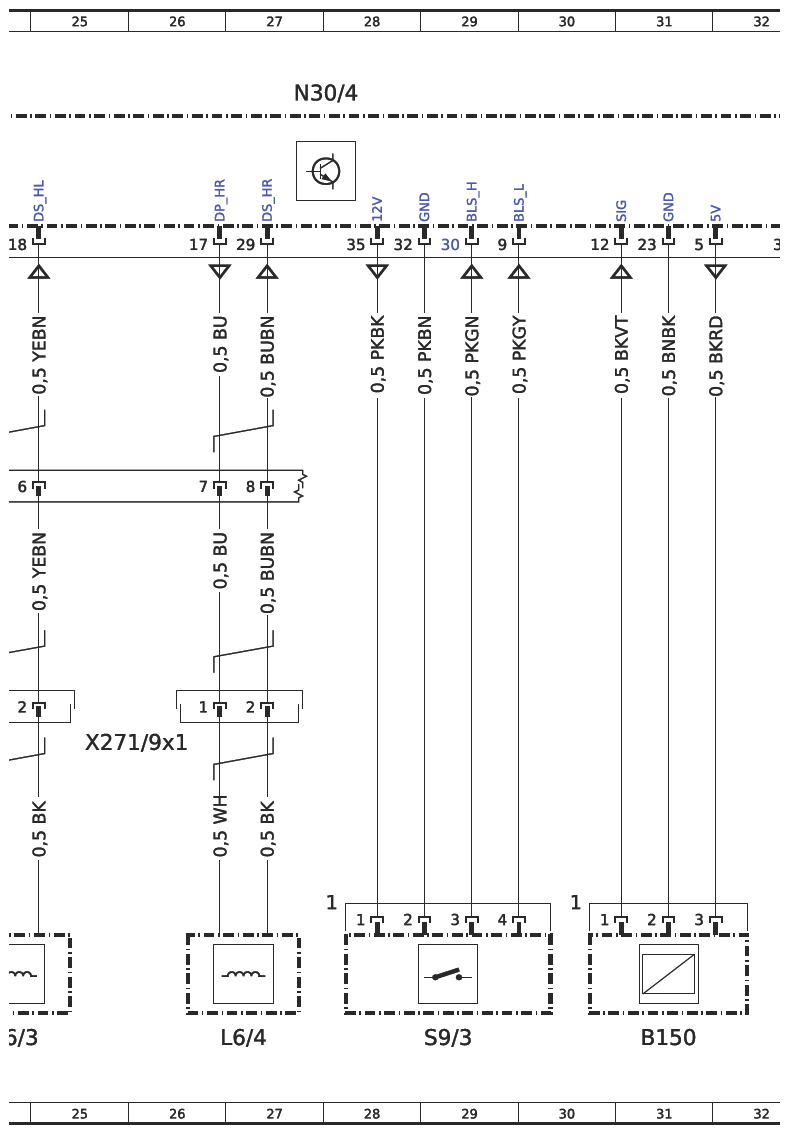

| S9/3 | Stop lamp switch | 29L |
| W70 | Electronic Stability Program ground point | 9E |
| X227/1x1 | Main wiring harness/fuse and relay module electrical connector 1 | 4G |
| X227/1x2 | Main wiring harness/fuse and relay module electrical connector 2 | 2G |
| X267/1x1 | Left front axle rpm sensor electrical connector | 19G |
| X268/1x1 | Right front axle rpm sensor electrical connector | 21G |
| X270/9x1 | Left rear axle rpm sensor electrical connector | 23H |
| X271/9x1 | Right rear axle rpm sensor electrical connector | 26H |
| X302 | Chassis CAN (CAN E) potential distributor electrical connector | 13L |
| X4/20x2 | High-voltage battery connecting point 2 | 23F |
