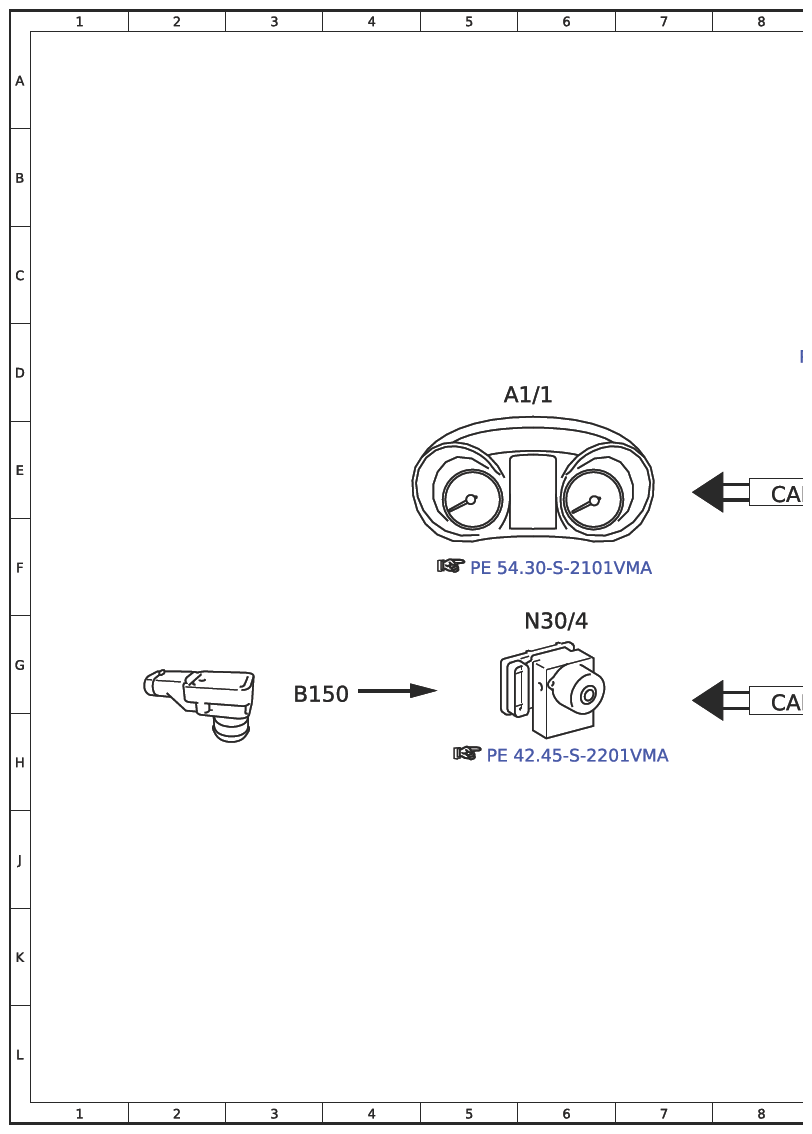

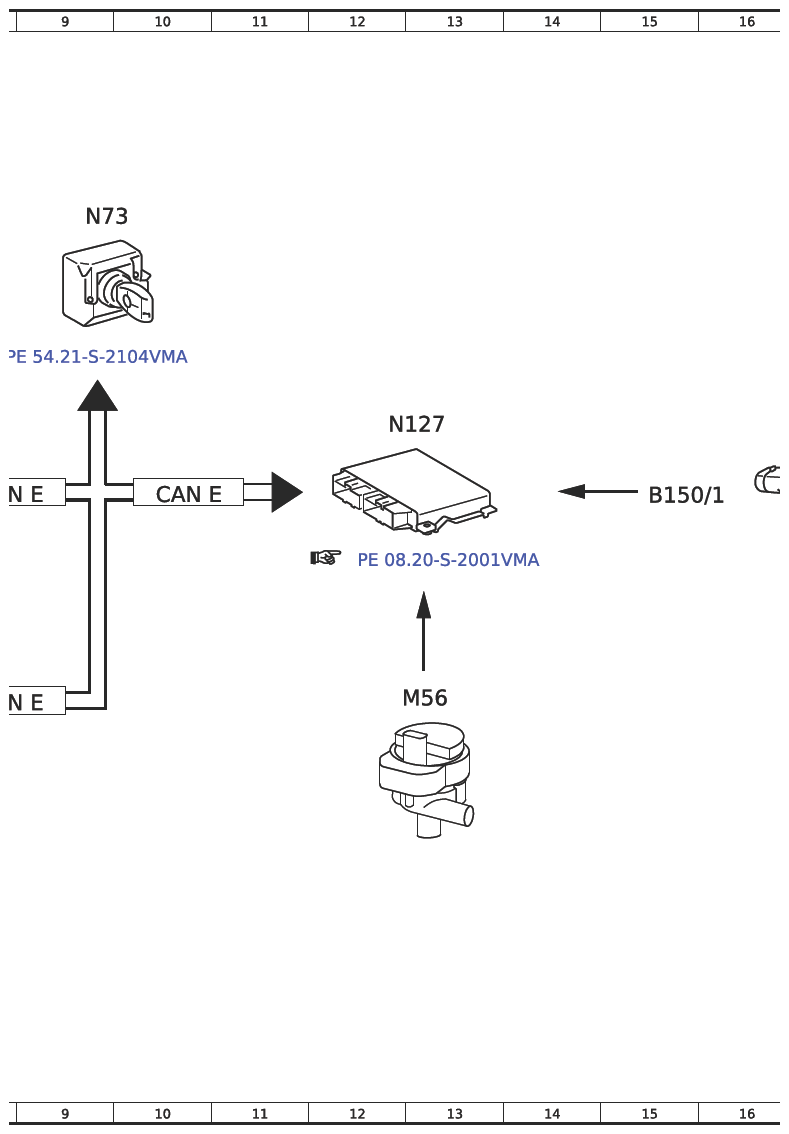

(Electrical Function Schematic For Vacuum Supply - PE42.22-S-2051-97TRH)
Model 447.6 with code M8E (Electric motor 85 kW/battery 60 kWh (usable))
Model 447.6 with code ME0 (Electric motor 85 kW)
Model 447.7 up to 9/30/20 with code ME0 (Electric motor 85 kW)
Model 447.7 with code M7E (Electric motor 150 kW/battery 60 kWh (usable))
Model 447.7 with code ME4 (Electric motor 145 kW)
| Code: | Designation: | Position: |
|---|---|---|
| A1/1 | Instrument cluster (KI) control unit | 6D |
| B150 | ESP® brake vacuum sensor | 3G |
| B150/1 | Powertrain control unit brake vacuum sensor | 15E |
| CAN E | Chassis CAN | 8E |
| CAN E | Chassis CAN | 10E |
| CAN E | Chassis CAN | 8G |
| M56 | Electric vacuum pump | 13G |
| N127 | Drivetrain control unit | 13E |
| N30/4 | Electronic Stability Program (ESP) control unit | 6G |
| N73 | Electronic ignition lock (EZS) control unit | 9B |
