Correct Installation Position Of Brake Fluid Reservoir - SM42.10-S-0026A

Model 447.### ## as of 000335 up to 166269

OPERATION NO. OF OPERATION TEXTS OR STANDARD TEXTS AND FLAT RATES

Category	Op. no.	Operation text	Time	Acc. no.	Code
P	02 9512	Operations: Check installation position of brake fluid reservoir, correct if necessary	-	VS20BREMBE	43 901 91

Courtesy of MERCEDES-BENZ USA

	Check
1	Check whether vehicle is affected by measure	Affected vehicles: Correct installation position of brake fluid reservoir For authorized Mercedes-Benz service partners, only the entry in the "Extended VEGA Application" (EVA) system, in the "Current" tab is decisive. An additional test of the affected vehicles in the workshop information system (WIS) or vehicle list is thereby not necessary.	SM42.10-S-0026-01AAA

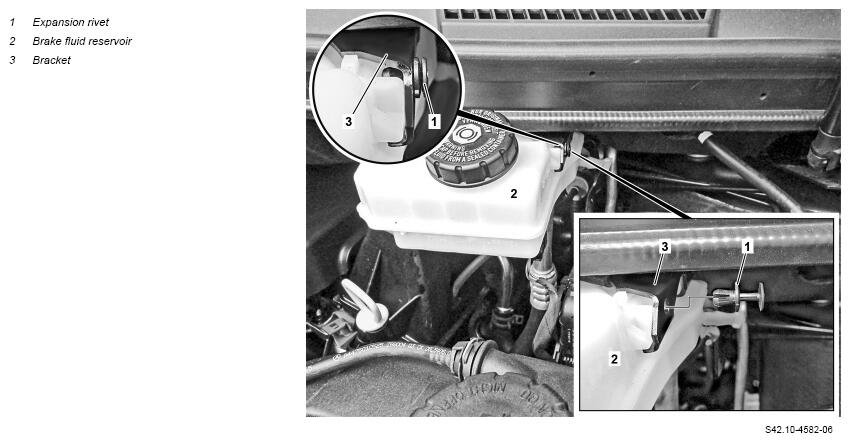

2	Check if the expansion rivet (1) is present and undamaged	If the expansion rivet (1) is present and undamaged ↓ continue with operation step 3. if the expansion rivet (1) is missing or damaged ↓ Proceed with step 4.
3	Check the installation position for the brake fluid reservoir (2)	Pull brake fluid reservoir (2) in direction of travel and then push against the direction of travel. The installation position of the brake fluid reservoir (2) is correct, when the brake fluid reservoir (2) is firmly seated in the bracket (3). If the brake fluid reservoir (2) is firmly seated in the bracket (3) ↓ Vehicle not affected by measure and can be handed over to the customer. If the brake fluid reservoir (2) is not firmly seated in the bracket (3) ↓ Proceed with step 4.
4	Correct installation position of brake fluid reservoir (2)	To do so, press brake fluid reservoir (2) against direction of travel until it is firmly seated in the bracket (3). The installation position of the brake fluid reservoir (2) is now corrected.
5	Install expansion rivet (1)	Expansion rivet (1) must be installed as shown. Otherwise, a firm seating and correct installation position of the brake fluid reservoir (2) cannot be assured. If the expansion rivet (1) is not present or damaged, it can be procured through the known parts ordering process.

PARTS ORDERING NOTE

Part no.	Designation	Quantity
A 201 990 01 92	Expansion rivet mounting for brake fluid reservoir on bracket	1
