Check Installation Position Of Brake Fluid Reservoir, Correct If Necessary (Code: VS2BE42BRE) - SM42.10-S-0052A

Model 447.60# #3 as of 044173 up to 912503 with engine 274 with code MM1 (Engine M274 DEH 20 LA 155 kW (211 hp) 5500 rpm) with code ZU8 (National version for USA)

Courtesy of MERCEDES-BENZ USA

	Risk of accident  when commissioning the vehicle due to a lack of braking effect when the service brake is operated for the first time after repair work.	Before starting the engine, actuate brake pedal several times until pressure is built up and maintained in the brake system.	AS42.50-Z-0002-01A
	Risk of poisoning  from swallowing brake fluid. Risk of injury  from skin and eye contact with brake fluid	Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid.	AS42.50-Z-0001-01A
Notice	Brake fluid notes		AH42.50-P-0001-01A
Notice	Notes on repairs to brake system		AH42.00-P-0003-01A
Notice	Notes on externally invisible brake fluid loss		AH42.10-P-9406-02A
	General information on malfunctions in the brake system		AH42.30-D-2007-01KOA
	Check
1	Check if vehicle is affected by measure.	Affected vehicles: Check installation position of brake fluid reservoir, correct if necessary (code: VS2BE42BRE) For authorized Mercedes-Benz service partners, only the entry in the "Extended VEGA Application" (EVA) system, in the "Current" tab is decisive. An additional test of the affected vehicles in the workshop information system (WIS) or vehicle list is thereby not necessary.	SM42.10-S-0052-01AAA

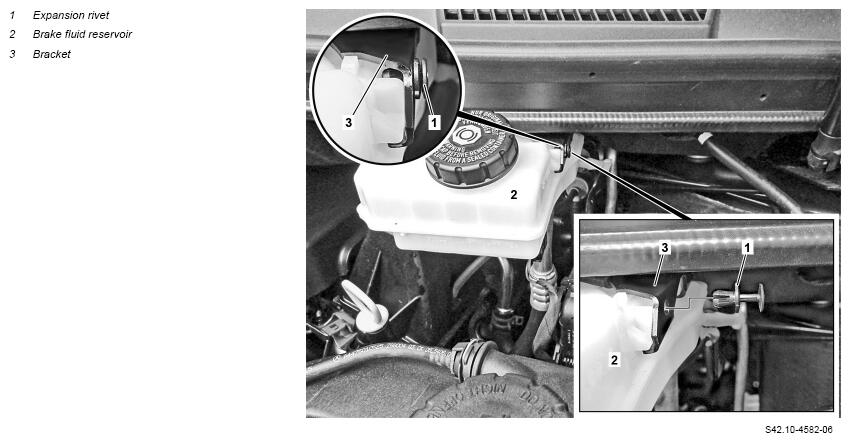

2	Check if expansion rivet (1) is present and undamaged.	If expansion rivet (1) is present and undamaged, ↓ Continue with operation step 3. If expansion rivet (1) is missing or damaged, ↓ continue with operation step 4.
3	Check installation position of brake fluid reservoir (2).	Pull brake fluid reservoir (2) in direction of travel and then push against direction of travel. The installation position of the brake fluid reservoir (2) is correct, when the brake fluid reservoir (2) is firmly seated in the bracket (3). If brake fluid reservoir (2) is firmly seated in holder (3), ↓ do not perform any further operations and hand the vehicle over to the customer. If brake fluid reservoir (2) is not firmly seated in holder (3), ↓ continue with operation step 4.
	Correct installation position
4	Correct installation position of brake fluid reservoir (2). To do so, press brake fluid reservoir (2)	against direction of travel until it is firmly seated in holder (3). The installation position of the brake fluid reservoir (2) is now corrected.
5	Install new expansion rivet (1).	Expansion rivet (1) must be installed as shown. Otherwise, firm seating and correct installation position of the brake fluid reservoir (2) cannot be guaranteed. Dispose of removed component parts that are no longer required properly. To do so, observe the applicable legal requirements and specifications of the relevant country.
