Remove/Install Brake Fluid Reservoir - AR42.10-S-0301E
Model 447, 448
| Risk of accident when commissioning the vehicle due to a lack of braking effect when the service brake is operated for the first time after repair work. | Before starting the engine, actuate brake pedal several times until pressure is built up and maintained in the brake system. | AS42.50-Z-0002-01A | |
| Risk of poisoning from swallowing brake fluid. Risk of injury from skin and eye contact with brake fluid | Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. | AS42.50-Z-0001-01A | |
| Notice | Notes on externally invisible brake fluid loss | AH42.10-P-9406-02A | |
| Notice | Notes on repairs to brake system | AH42.00-P-0003-01A | |
| Notice | Brake fluid notes | AH42.50-P-0001-01A | |
| Remove/install | |||

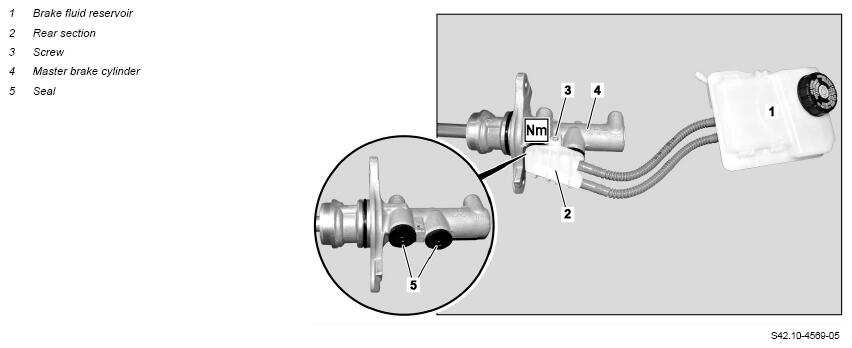

| 1 | Remove master brake cylinder (4) | AR42.10-S-0300E | |
| 2 | Remove bolt (3) | *BA42.10-Z-1002-05KOE | |
| 3 | Detach rear section (2) from master brake cylinder (4) | ||
| 4 | Install in the reverse order |
MASTER BRAKE CYLINDER
| Number | Designation | Model 447, 448 | |
|---|---|---|---|
| BA42.10-Z-1002-05KOE | Bolt, rear section of brake fluid reservoir to master brake cylinder | Nm | 8 |
