Remove/Install Brake Carrier Plate - AR42.10-S-0280E

Model 447 with engine 254, 654

Except Code B25 (Electric parking brake)

Model 447 with engine 274, 651

Model 447 with engine 654

With Code B25 (Electric parking brake)

Except Code XM7 (MOPF II)

Model 448

Except Code XM7 (MOPF II)

Courtesy of MERCEDES-BENZ USA

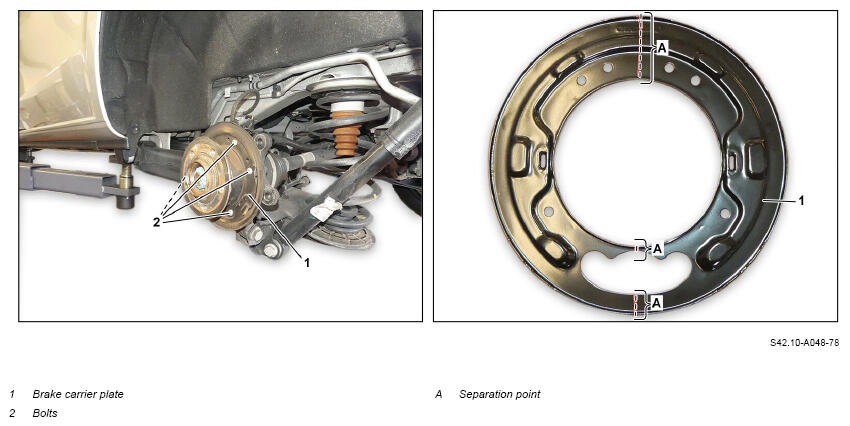

Shown with engine 654

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury  . Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Notes on repairs to brake system		AH42.00-P-0003-01A
	Remove
1	Remove brake shoes of parking brake.	Model 447 with engine 254, 274, 651, 654, model 448	AR42.20-S-0530E
2	Remove screws (2).
3	Remove brake carrier plate (1).	To do so, separate brake carrier plate (1) centrally at connecting points (A) and remove sections of brake carrier plate (1).
	Clean
4	Remove metal shavings in working area.
	Install
5	Separate new brake carrier plate (1) at separating points (A).	If brake carrier plate (1) is replaced.
6	Apply primer to separating points (A) of sections of brake carrier plate (1).
Notice	General notes on touch-up applicators and paint spray cans		AH98.00-P-9409-06A
		Primer stick	*BR00.45-Z-1012-07A
7	Install brake carrier plate (1).	To do so, attach sections of brake carrier plate (1), screw in screws (2) and tighten slightly by hand. When doing so, align sections of brake carrier plate (1) correctly relative to each other and with the wheel carrier.
8	Tighten screws (2).	M6	*BA00.10-Z-1002-01KOA
9	Install brake shoes of parking brake.	Model 447 with engine 254, 274, 651, 654, model 448	AR42.20-S-0530E
