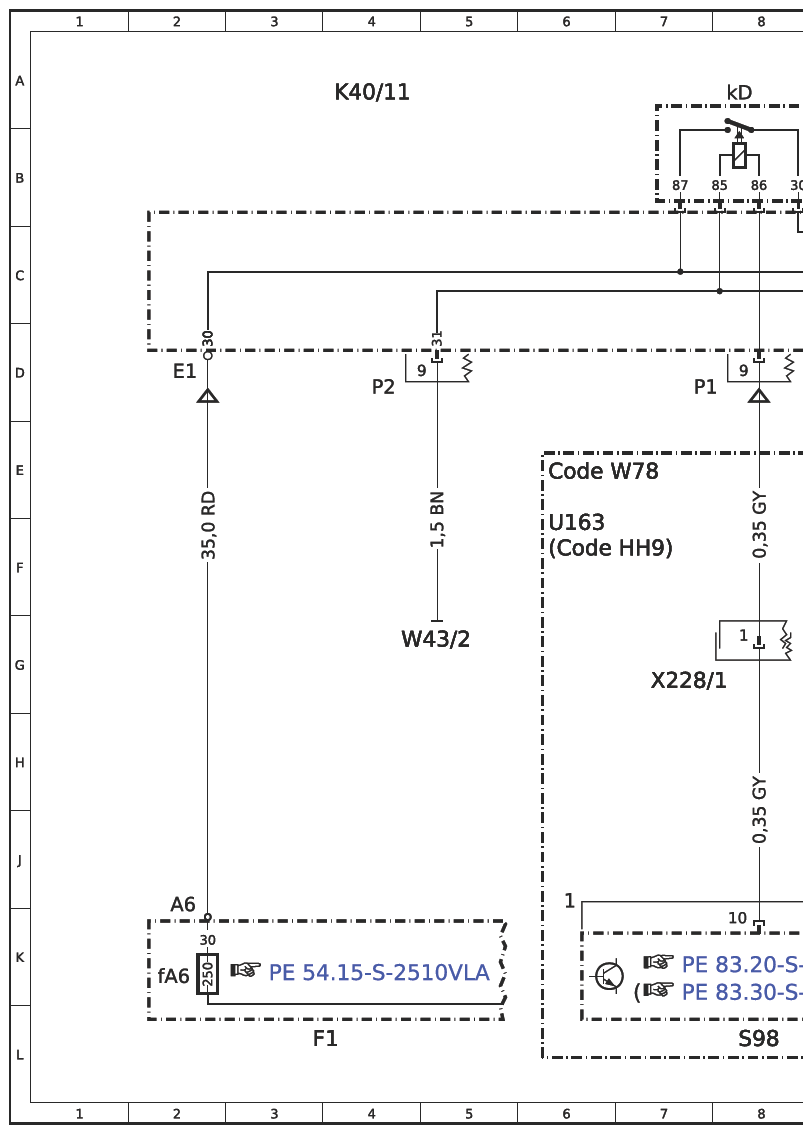

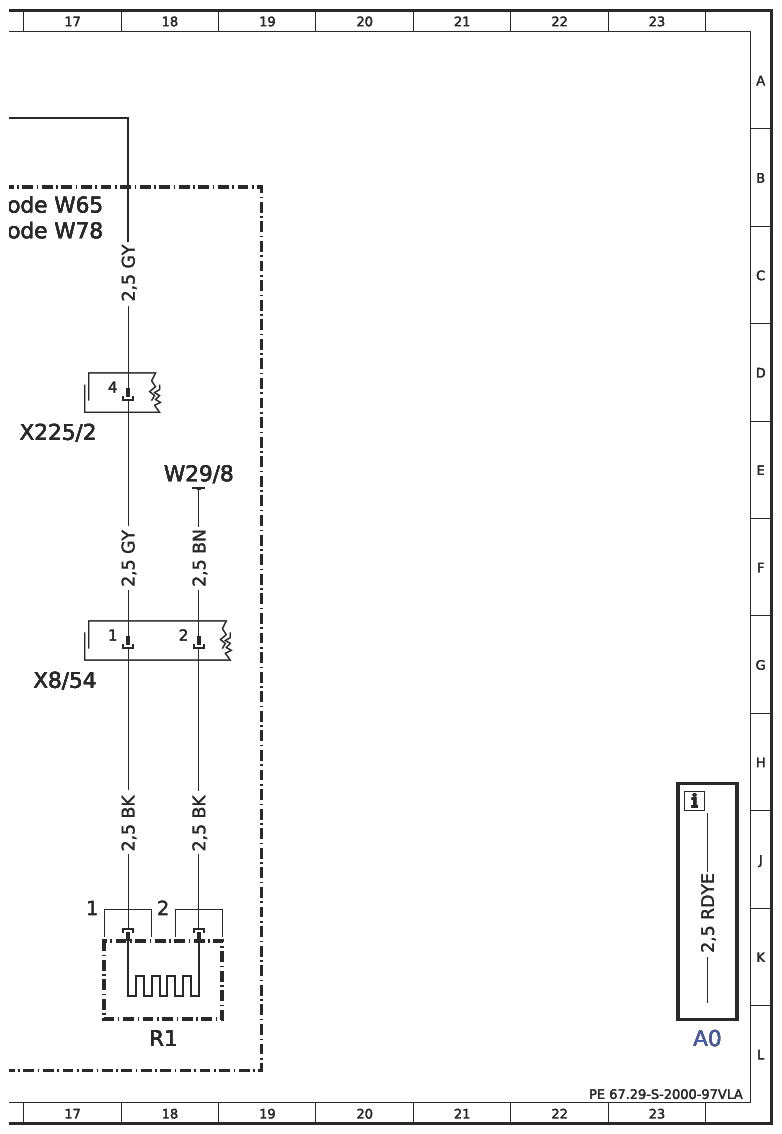

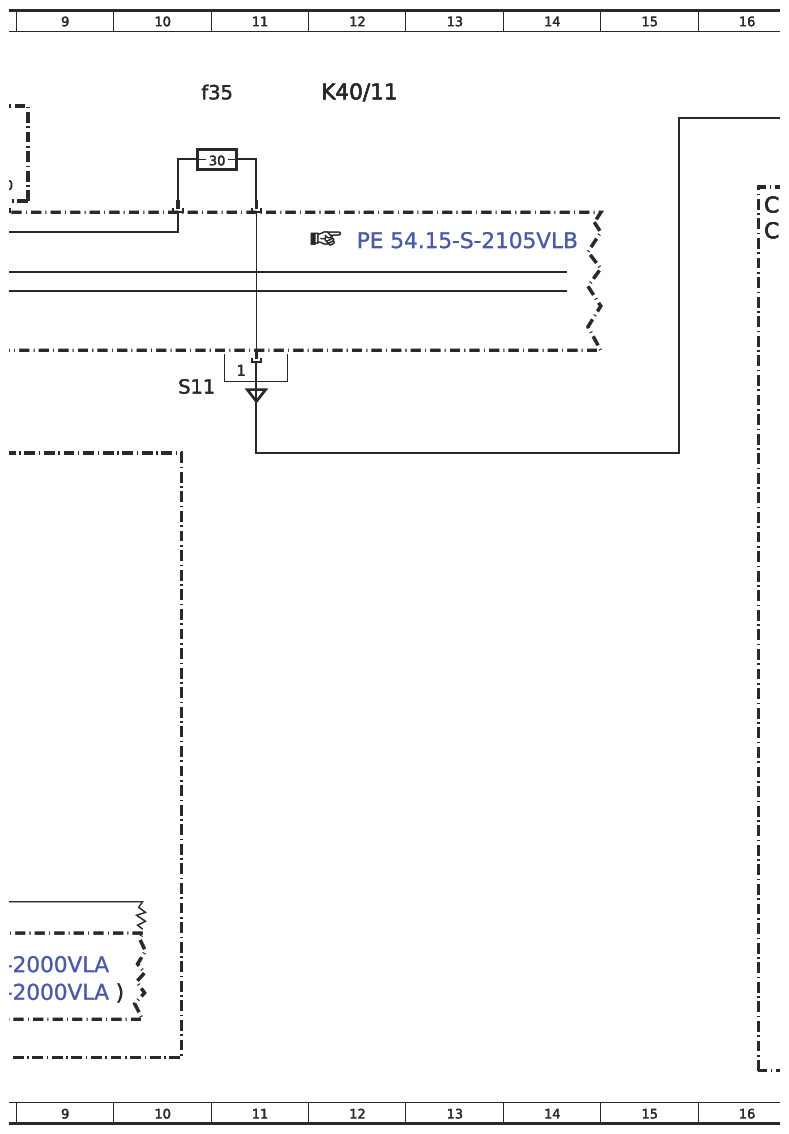

(Electric Wiring Diagram For Heated Rear Window - PE67.29-S-2000-97VLA)
Model 447.6 with code ZL3 (National version for Latin America) except code M8E (Electric motor 85 kW/battery 60 kWh (usable)) except code ME0 (Electric motor 85 kW) except code XM0 (Facelift) except code XM7 (MOPF II) R1
Model 447.7 with code ZL3 (National version for Latin America) except code M7E (Electric motor 150 kW/battery 60 kWh (usable)) except code ME0 (Electric motor 85 kW) except code ME4 (Electric motor 145 kW) except code XM0 (Facelift) except code XM7 (MOPF II) R1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 23L |
| Code HH9 | Semi-automatically controlled air conditioning, TEMPMATIC | 6F |
| Code W65 | Liftgate | 16B |
| Code W78 | Window in liftgate/hinged rear door with wash/wipe system | 6E |
| Code W78 | Window in liftgate/hinged rear door with wash/wipe system | 16C |
| F1 | Pre-fuse box | 3L |
| F1fA6 | Pre-fuse A6 | 2K |
| K40/11 | Firewall fuse and relay module | 4A |
| K40/11 | Firewall fuse and relay module | 12A |
| K40/11f35 | Fuse 35 | 10A |
| K40/11 kD | Heated rear window relay | 8A |
| R1 | Rear window heater | 18L |
| S98 | Air conditioning control and operating unit (front & rear KLA) | 8L |
| U163 | Valid without code HH9 Semi-automatic air conditioning, TEMPMATIC | 6F |
| W29/8 | Left D-pillar ground point | 18E |
| W43/2 | Right vehicle interior firewall ground point | 5G |
| X225/2 | Main wiring harness/firewall main wiring harness 3 electrical connector | 17E |
| X228/1 | Cockpit wiring harness/fuse and relay module electrical connector 2 | 7G |
| X8/54 | Left liftgate electrical connector 1 | 17G |
