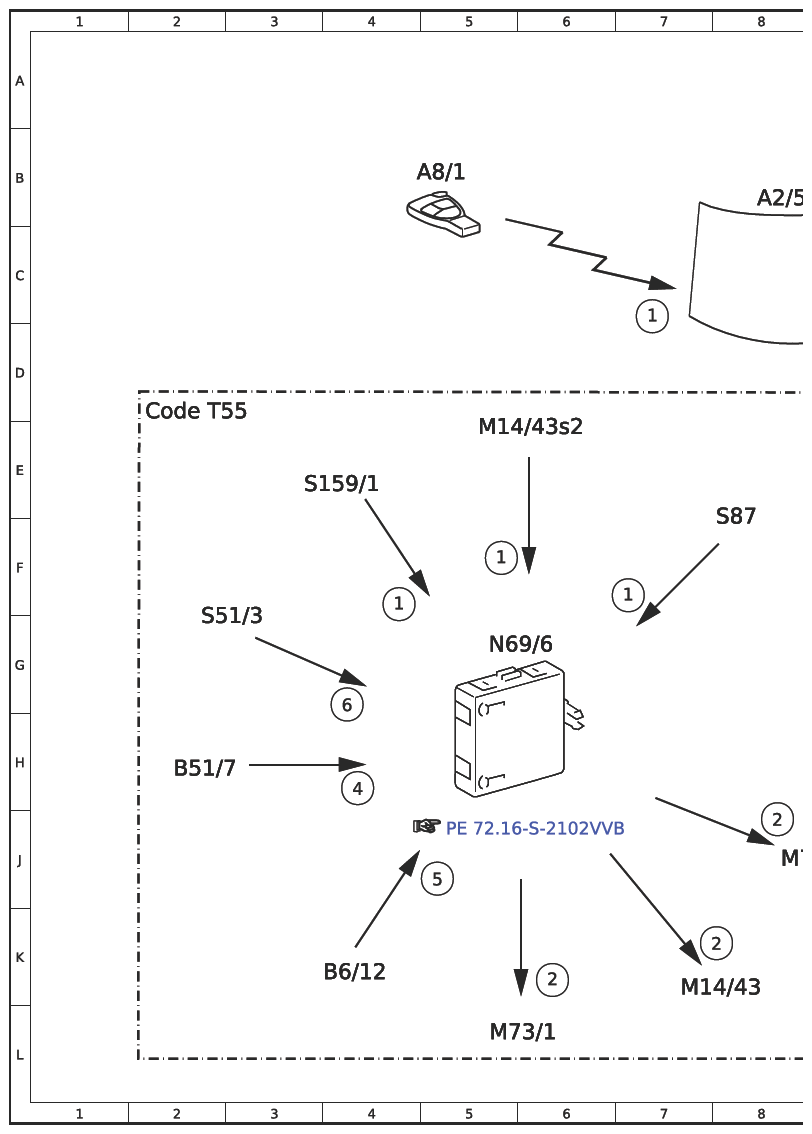

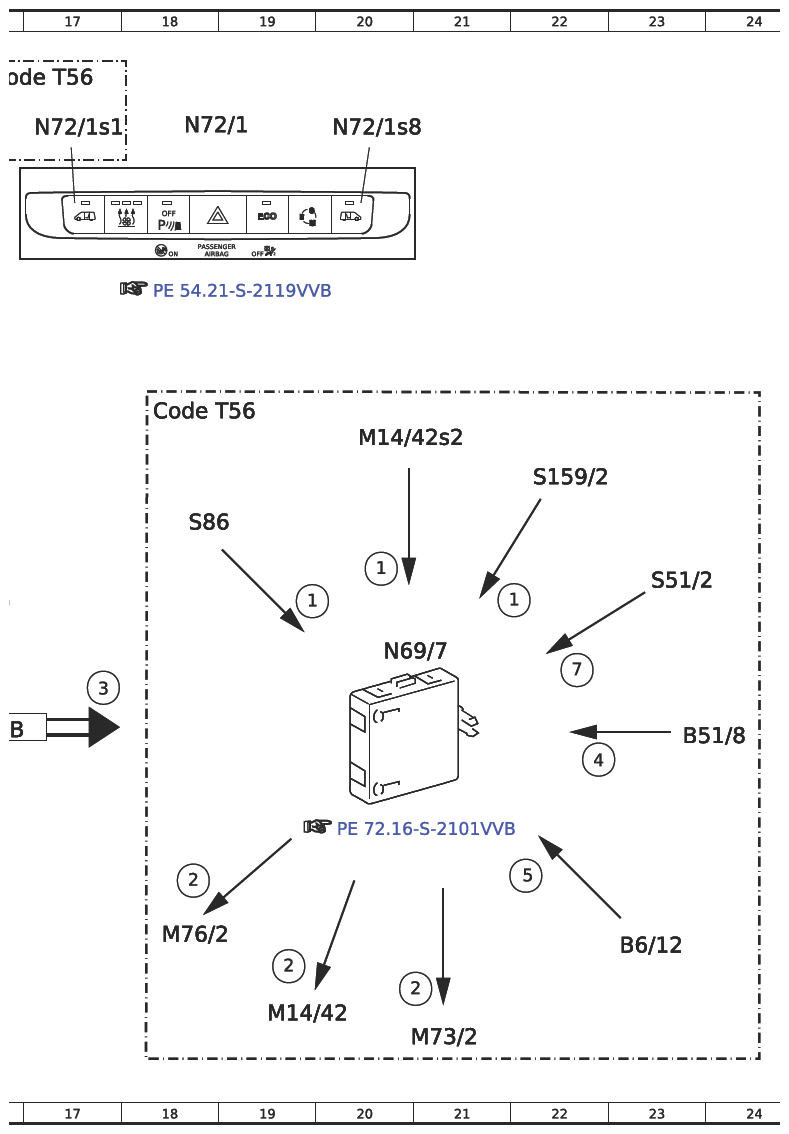

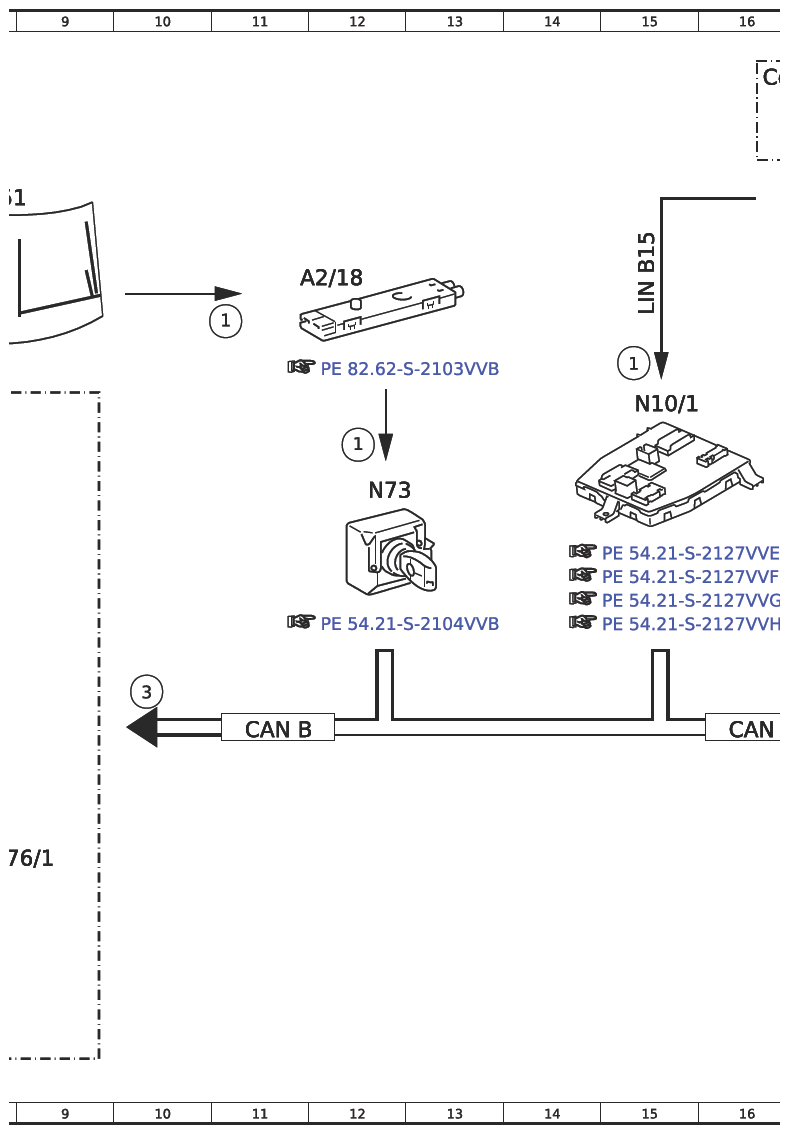

Electrical Function Schematic Of Electric Sliding Door - PE72.16-S-2040-97TRB
Model 447.7
with code T55 (Electric operation of sliding door on right)
except code XM0 (Facelift)
Model 447.7
with code T56 (Electric operation of sliding door on left)
except code XM0 (Facelift)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Open and close doors, signal | 5F |
| 1 | Open and close doors, signal | 7F |
| 1 | Open and close doors, signal | 7C |
| 1 | Open and close doors, signal | 11D |
| 1 | Open and close doors, signal | 12E |
| 1 | Open and close doors, signal | 15D |
| 1 | Open and close doors, signal | 20F |
| 1 | Open and close doors, signal | 19F |
| 1 | Open and close doors, signal | 22F |
| 1 | Open and close doors, signal | 4F |
| 2 | Electric sliding door drive, actuation | 6K |
| 2 | Electric sliding door drive, actuation | 20K |
| 2 | Electric sliding door drive, actuation | 8J |
| 2 | Electric sliding door drive, actuation | 8K |
| 2 | Electric sliding door drive, actuation | 19K |
| 2 | Electric sliding door drive, actuation | 18J |
| 3 | Open and close doors, request | 10G |
| 3 | Open and close doors, request | 17G |
| 4 | Anti-pinch protection, signal | 4H |
| 4 | Anti-pinch protection, signal | 22H |
| 5 | Position and rpm sensor, signal | 5J |
| 5 | Position and rpm sensor, signal | 22J |
| 6 | Right sliding door, status | 4G |
| 7 | Left sliding door, status | 22G |
| A2/18 | FM/AM antenna amplifier | 12C |
| A2/51 | FM/AM antenna | 8B |
| A8/1 | Transmitter key | 5B |
| B51/7 | Right sliding door front edge obstruction sensor | 2H |
| B51/8 | Left sliding door front edge obstruction sensor | 23H |
| B6/12 | Travel and speed sensor | 4K |
| B6/12 | Travel and speed sensor | 23K |
| CAN B | Interior CAN | 11H |
| CAN B | Interior CAN | 16H |
| Code T55 | Electric controls for right sliding door | 2D |
| Code T56 | Electric controls for left sliding door | 18D |
| Code T56 | Electric controls for left sliding door | 16A |
| LIN B15 | Battery sensor LIN | 15C |
| M14/42 | Left electric sliding door central locking actuator | 19L |
| M14/42s2 | Left electric sliding door switch, external operation | 20E |
| M14/43 | Right electric sliding door central locking actuator | 7K |
| M14/43s2 | Right electric sliding door switch, external operation | 5E |
| M73/1 | Right electric sliding door drive | 5L |
| M73/2 | Left electric sliding door drive | 21L |
| M76/1 | Right sliding door closing assist actuator | 8J |
| M76/2 | Left sliding door closing assist actuator | 18K |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 15D |
| N69/6 | Right sliding door (E-LSTR) control unit | 5G |
| N69/7 | Left sliding door (E-LSTL) control unit | 20G |
| N72/1 | Upper control panel (UCP [OBF]) control unit | 18B |
| N72/1s1 | Left electric sliding door button | 17B |
| N72/1s8 | Right electric sliding door button | 20B |
| N73 | Electronic ignition lock (EZS) control unit | 12E |
| S159/1 | Right sliding door button | 4E |
| S159/2 | Left sliding door button | 22E |
| S51/2 | Left electric sliding door central locking with closing assist main lock switch | 23F |
| S51/3 | Right electric sliding door central locking with closing assist main lock switch | 2G |
| S86 | Door handle operation switch, left electric sliding door | 18F |
| S87 | Door handle operation switch, right electric sliding door | 8F |
