Replace Decorative Foil On Font Door Window Frame - AR72.10-S-1016E

Model 447

Model 448

Courtesy of MERCEDES-BENZ USA

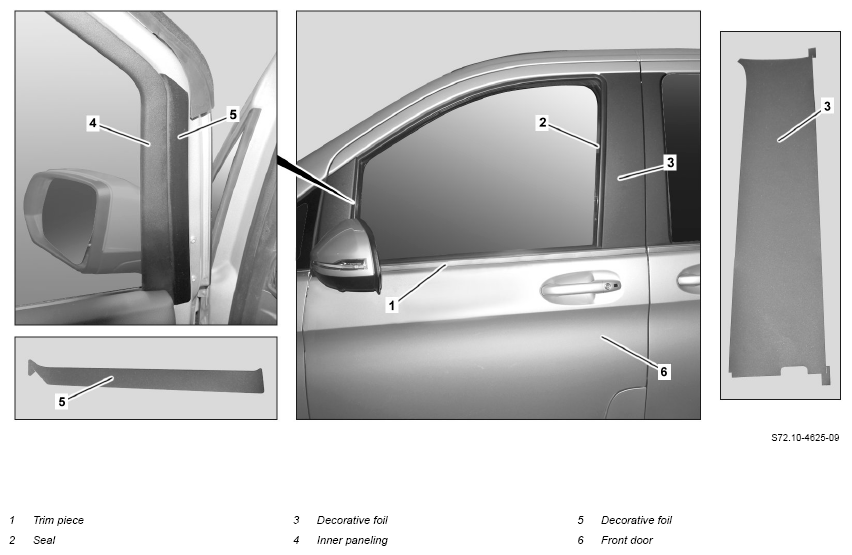

Shown On left side of vehicle on Model 447.8 With Code T19 (Left sliding door) and CODE VQ1 (AVANTGARDE)

	Remove
1	Remove trim piece (1) from front door (6)	When replacing decorative foil (3). Model 447.8 with code VQ1 (AVANTGARDE) Model 448.8	AR88.85-S-9741E
2	Completely side in front door (6)
3	Detach seal (2) in area of decorative foil (3) on front door (6)	When replacing decorative foil (3).
4	Detach seal (2) in area of decorative foil (5) on front door (6)	When replacing decorative foil (5).
5	Heat decorative foil (3, 5) with hot air gun and remove from front door (6)
	Clean
6	Clean bonding surface on front door (6)	The bonding surface must be absolutely free of dust and grease. Otherwise adhesion problems can occur. Cleaner	*BR00.45-Z-1025-04A
	Install
7	Remove protective foil from decorative foil (3, 5)
8	Align decorative foil (3, 5) at front door (6) as shown and glue on	Glue on decorative foil (3, 5) in increments and simultaneously smooth with squeegee. Otherwise air bubbles can occur below the decorative foil (3, 5).
9	Fasten seal (2) on front door (6)
10	Install trim piece (1) on front door (6)	When replacing decorative foil (3). Model 447.8 with code VQ1 (AVANTGARDE) Model 448.8	AR88.85-S-9741E
