Remove/Install Wooden Door Trim On Rear-End Door - AR72.20-S-6615-04E

Model 447.6

1. Turn pin (7) in respective expansion rivet (8).
2. Remove all expansion rivets (8) using a suitable tool and remove door trim (1).
3. Install in the reverse order.

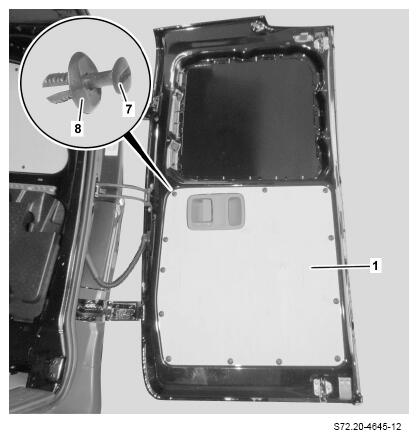

   - Shown On right rear-end door

   Courtesy of MERCEDES-BENZ USA
