Remove/Install Seal (Top) On Front Door Window Frame - AR72.10-S-1550E

Model 447

Model 448

Courtesy of MERCEDES-BENZ USA

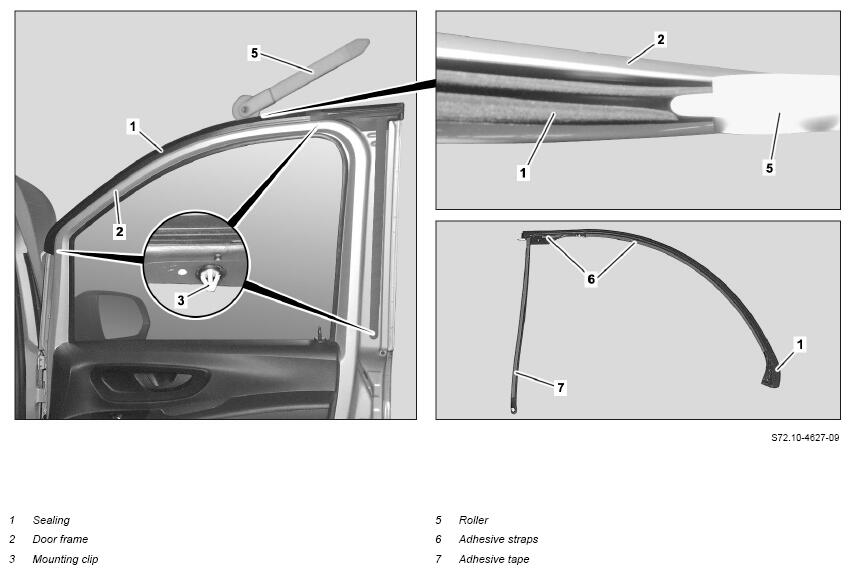

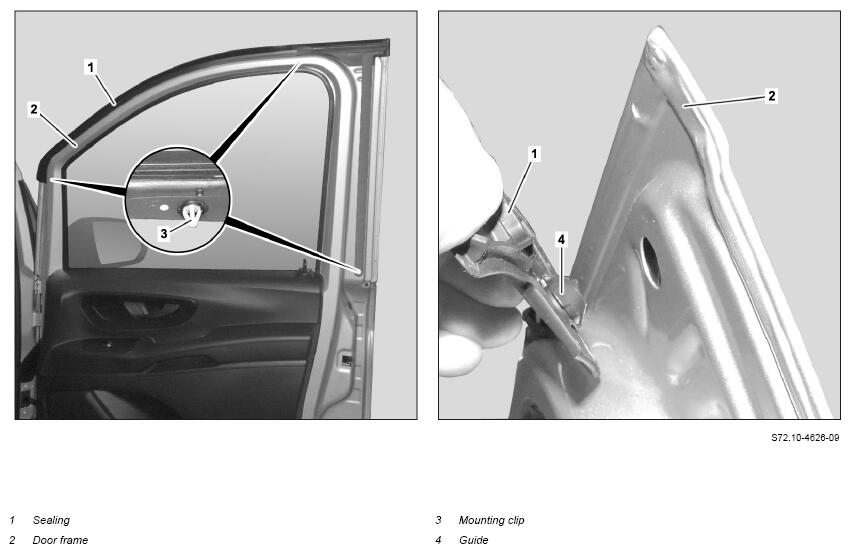

Shown On right side of vehicle

Courtesy of MERCEDES-BENZ USA

Shown On right side of vehicle

	Remove
1	Remove sealing (1) from door frame (2)
2	Remove adhesive tapes (6) from seal (1)	If seal (1) is not replaced.
3	Remove adhesive tapes (7) from seal (1)	Model 447, 448 Right side of vehicle Model 447, 448 with code T19 (Sliding door left) Left side of vehicle If seal (1) is not replaced.
	Clean
4	Remove adhesive residues from seal (1) on door frame (2)
5	Clean bonding surfaces on seal (1) on door frame (2)	Bonding surface should be free of grease and dust. Otherwise adhesion problems can occur. Cleaner	*BR00.45-Z-1025-04A
6	Clean bonding surfaces on adhesive tape (6) on seal (1)	If seal (1) is not replaced. Cleaner	*BR00.45-Z-1025-04A
7	Clean bonding surfaces on adhesive tape (7) on seal (1)	Model 447, 448 Right side of vehicle Model 447, 448 with code T19 (Sliding door left) Left side of vehicle If seal (1) is not replaced. Cleaner	*BR00.45-Z-1025-04A
	Install
8	Remove adhesive tapes (6) from seal (1)	If seal (1) is not replaced. Adhesive tape/Acrylic Plus PT 1100	*BR00.45-Z-1099-02A
9	Replace adhesive tape (7) on seal (1)	Model 447, 448 Right side of vehicle Model 447, 448 with code T19 (Sliding door left) Left side of vehicle If seal (1) is not replaced. Adhesive tape/Acrylic Plus PT 1100	*BR00.45-Z-1099-02A
10	Remove carrier foils from adhesive tapes (6)
11	Remove carrier foil from adhesive tape (7)	Model 447, 448 Right side of vehicle Model 447, 448 with code T19 (Sliding door left) Left side of vehicle
12	Position seal (1) in area of retaining clips (3) on door frame (2) and press in retaining clips (3)	Helper required. The adhesive tapes (6, 7) should not come into contact with the door frame (2).
13	Insert guide (4) into mount on door frame (2), align seal (1) in door frame (2) and press on	Helper required.
14	Press on seal (1) in area of adhesive tapes (6) as shown with aid of roller (5)	Roller	Fig 2
15	Press on seal (1) in area of adhesive tapes (7) with aid of roller	Model 447, 448 Right side of vehicle Model 447, 448 with code T19 (Sliding door left) Left side of vehicle Roller	Fig 1

Fig 1: Identifying Roller (168 589 05 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Roller (171 589 06 63 00)

Courtesy of MERCEDES-BENZ USA
