Remove/Install Plastic Door Trim On Rear-End Door - AR72.20-S-6615-02E

Model 447.7

Fig 1: Identifying Clip Remover (452 589 01 63 00)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

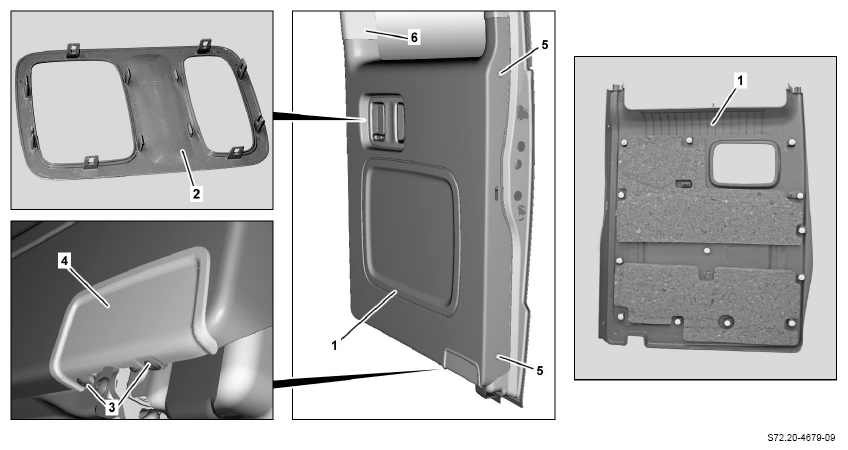

Shown On removed right rear-end door

1. Unclip retaining clips of cover (2) in succession using clip remover and remove cover (2).

   Carefully unclip cover (2).

   Retaining clips can otherwise break and cover (2) must be replaced

2. Remove expansion rivets (5) using a suitable tool.
3. Unclip and remove door trim (1) using clip remover.

   Attachment clips must be replaced.

4. Remove expansion rivets (3) using a suitable tool and remove cover (4) from door trim (1).

   When replacing door trim (1).

5. Install in the reverse order.
