Remove/Install Hardboard Door Trim On Rear-End Door - AR72.20-S-6615-03E

Model 447.7

Fig 1: Identifying Clip Remover (452 589 01 63 00)

Courtesy of MERCEDES-BENZ USA

1. Unclip retaining clips of cover (2) in succession using clip remover and remove cover (2).

   Carefully unclip cover (2).

   Retaining clips can otherwise break and cover (2) must be replaced.

2. Turn pin (7) in respective expansion rivet (8).
3. Remove all expansion rivets (8) using a suitable tool and remove door trim (1).
4. Install in the reverse order.

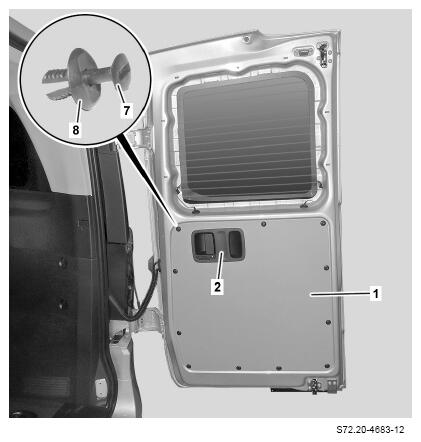

   - Shown On right rear-end door

Courtesy of MERCEDES-BENZ USA
