Detach/Attach Tailgate Trim - AR72.20-S-6445-02E

Model 447.6

Model 447.7

Except Code V23 (Interior trim, premium version)

Except Code VK7 (Trim, rear door/liftgate, superior quality)

Except Code ZK4 (Mixto)

Model 447.7

With Code V23 (Interior trim, premium version)

With Code ZK4 (Mixto)

Except Code VK7 (Trim, rear door/liftgate, superior quality)

Model 447.7

With Code ZK4 (Mixto)

Except Code V23 (Interior trim, premium version)

Except Code VK7 (Trim, rear door/liftgate, superior quality)

Model 448.7

Except Code V23 (Interior trim, premium version)

Except Code W64 (Separately opening rear window)

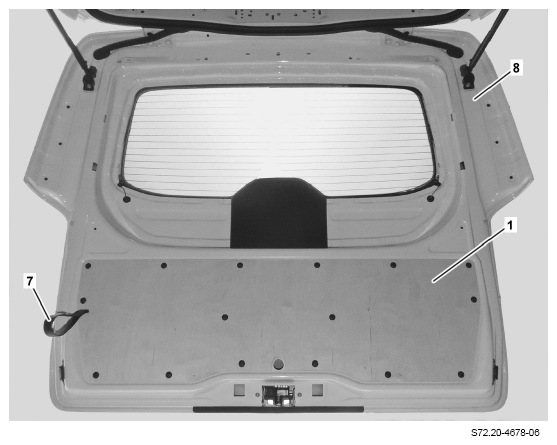

1. Remove expansion rivets of the liftgate trim (1) with the clip remover.
2. Release liftgate trim (1) from liftgate (8), pull tension loop (7) out of the liftgate trim (1), and remove liftgate trim (1).
3. Install in the reverse order.
