Remove/Install Panoramic Sliding Sunroof Roller Sun Blind Switch - AR77.21-S-0206E

Model 447.7/8, 448.8

Courtesy of MERCEDES-BENZ USA

Notice	Notes on carrying out repair work in the vehicle interior		AH68.00-D-0001-01KOS
	Remove/install

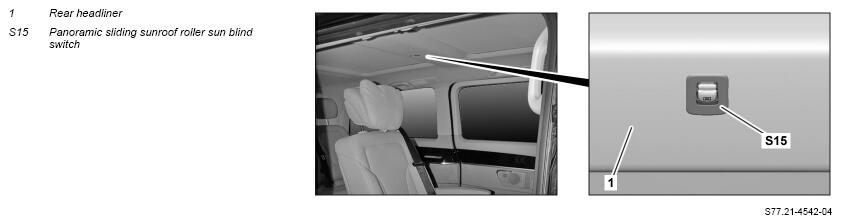

1	Unclip panoramic sliding roof roller sun blind (S15) from rear headliner (1) with long wedge	Long wedge	Fig 1
2	Disconnect electrical connector and remove panoramic sliding roof roller sun blind switch (S15)
3	Install in the reverse order
	Check
4	Check panoramic sliding roof roller sun blind for proper function

Fig 1: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
