Remove/Install Partition Wall On C-Pillars - AR68.74-S-0715EE
Model 447.7
With Code D57 (Full-width partition wall on C-pillar with window)
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Notes on carrying out repair work in the vehicle interior | AH68.00-D-0001-01KOS | |
| Remove/install | |||

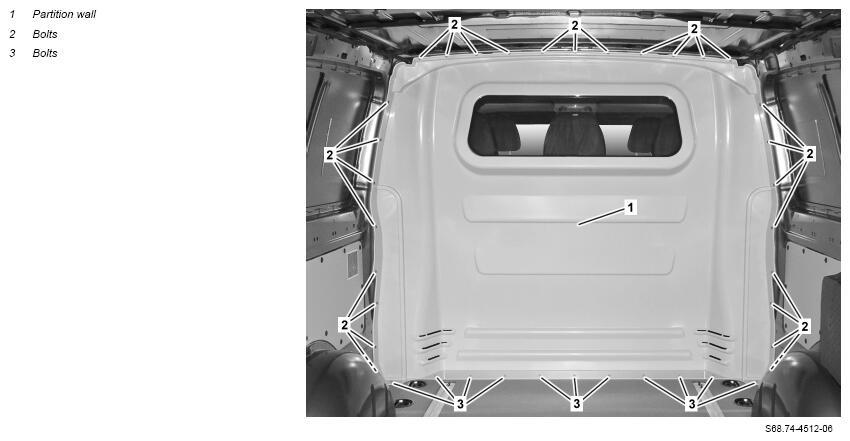

| 1 | Fold passenger bench seat toward front and secure against folding back with suitable object | ||
| 2 | Unscrew screws/bolts (2) | *BA68.74-Z-1001-01KOE | |
| 3 | Remove bolts (3) | *BA68.74-Z-1001-01KOE | |
| 4 | Remove partition wall (1) with aid of helper | Carefully remove partition wall (1). Otherwise partition wall (1) or parts in the vehicle interior can be damaged. |
|
| 5 | Install in the reverse order |
PARTITION WALL
| Number | Designation | Model 447.7 with code D57 (Full-width partition wall on C-pillar with window) | |
|---|---|---|---|
| BA68.74-Z-1001-01KOE | Screw/bolt, partition wall to body | Nm | 8 |
