Make Bores In Center Console - AR68.20-S-2000-06E

Model 447

With Code FG0 (Deluxe center console with roller shutter door)

With Code ZK7 (Equipment line MARCO POLO)

Except Code FF1 (Centre console with stowage compartment)

Except Code FF2 (Centre console with 1-DIN aperture)

Courtesy of MERCEDES-BENZ USA

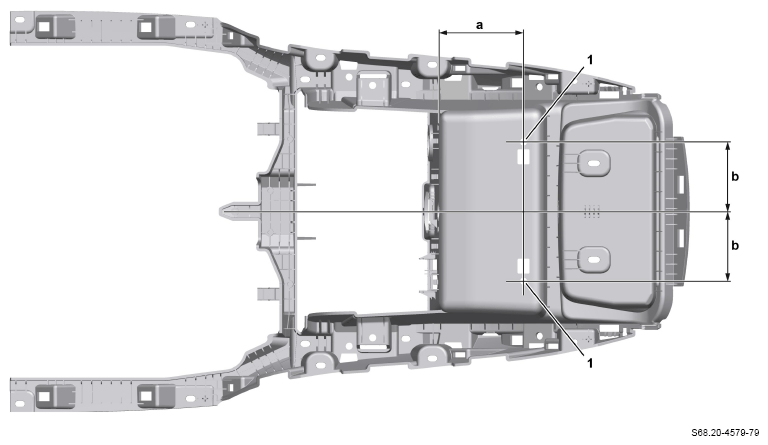

View from below

1. Produce bores (1) with a diameter of ø 3 mm as shown.

   Dimension (a): 85 mm

   Dimension (b): 70 mm

   Courtesy of MERCEDES-BENZ USA

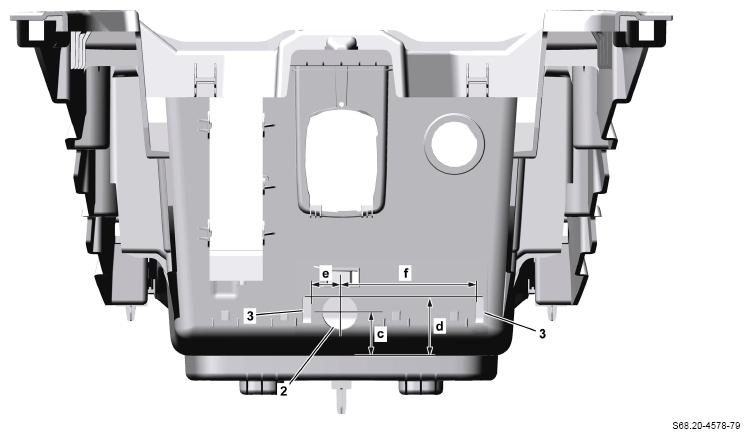

   View from front

2. Produce bore (2) with a diameter of ø 25 mm precisely in center as shown.

   Dimension (c): 30 mm

3. Produce cutouts (3) with a width of 7.5 mm and a height of 20 mm as shown.

   Dimension (d): 40 mm

   Dimension (e): 20 mm

   Dimension (f): 84 mm
