Side Mount For Fender Liner And Rear Bumper Changed - BT88.20-S-2200-01E

Model 447 as of 1/29/16

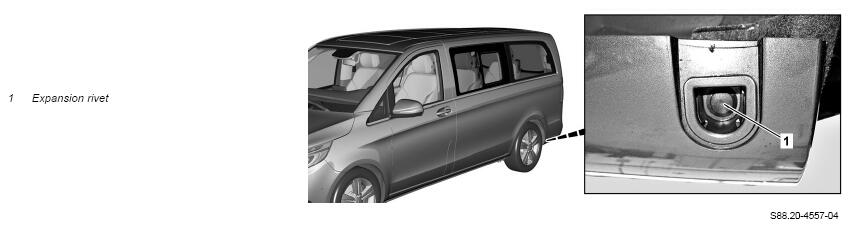

IMPORTANT Up to 28.01.2016 expansion rivets (1) are installed for the side mount for the bumper and fender liner.

Shown on left side of vehicle (construction period up to 28.01.2016)

G16500759Courtesy of MERCEDES-BENZ USA

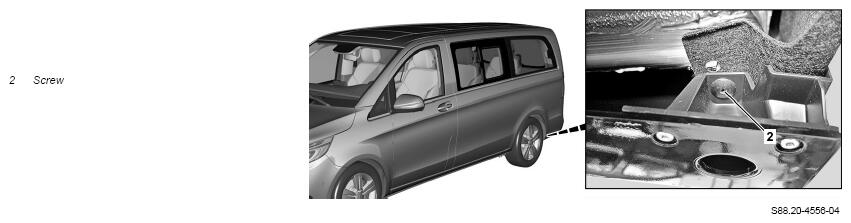

IMPORTANT As of 29.01.2016 bolts (2) are installed for the side mount for the bumper and the fender liner.

Shown on left side of vehicle (construction time as of 29.01.2016)

G16500760Courtesy of MERCEDES-BENZ USA
