Retrofit Handle Recess Shells For Outside Door Handles - AZ72.10-D-0002TS

Model 447, 907, 910

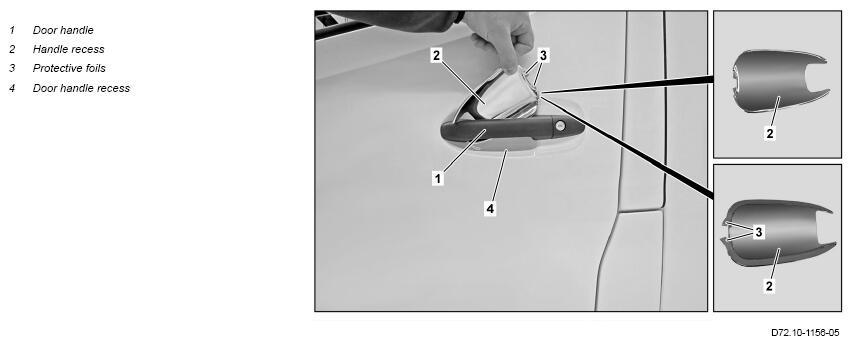

Shown on model 907 on the left front door

Courtesy of MERCEDES-BENZ USA

	Clean
1	Clean handle recess (4) of respective door handle (1).	Bonding surface must be absolutely free of dust and grease. Otherwise, a sufficient degree of adhesion cannot be assured.
		Cleaner	*BR00.45-Z-1025-04A
	Install
2	Lock vehicle.	Store the transmitter key in a suitable place where it is protected against unauthorized access.
		This prevents the front door from being opened unintentionally during installation.
3	Pull off protective foils (3) by approx. 2 cm and stick them back on.	This makes it easier to pull out the protective foils (3) later on during installation.
4	Position handle recess shell (2) in center of handle recess (4) and fix in place.	Fold back protective foils (3) so that they protrude over the outside edge of the handle recess (2) and are easy to grip.
		When aligning the handle recess shell (2), make sure that the gap between the handle recess shell (2) and the door handle (1) is the same all around.
5	Stick on handle recess shell (2).	Make absolutely sure that the installation position is correct when sticking it on. After the handle recess shell (2) has been stuck on, it can no longer be moved.
		The maximum adhesive strength is only reached after approx. 72 h at 20°C. Avoid any contact with moisture (e.g. rain, fog, frost, washing facility) or any mechanical stress within the first 24 h. Otherwise adhesion problems may occur.
		Gradually pull off protective foils (3) and firmly press handle recess shell (2) into handle recess (4) in aligned position.

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1025-04A	Cleaner	A 005 989 19 71

PARTS ORDERING NOTE

Part no.	Designation	Quantity
	Parts kit containing handle recess shells for outer door handles (see Odus)	1
