Lubricate Door Hinges - AP72.00-S-7220E
Model 447
with CODE W54 (Hinged rear doors, opening to side wall)
| Lubricate | |||

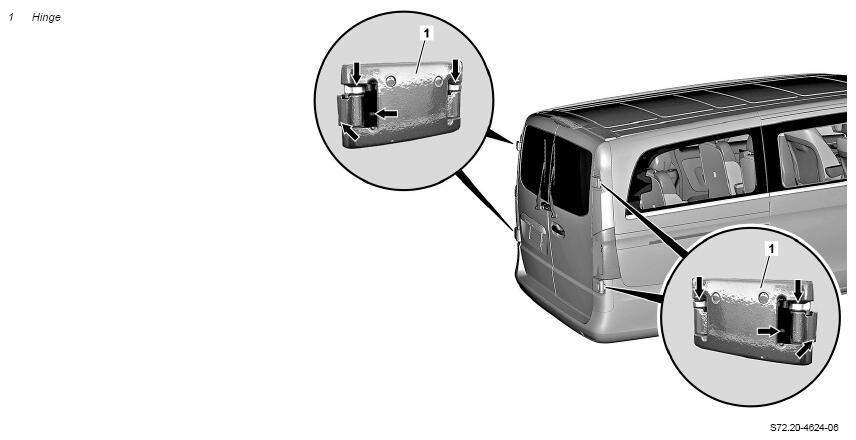

| 1 | Lubricate hinges (1) at points shown (arrows) | Synthetic grease, sliding roof 500 g, DB supply specification 6827.60 | *BR00.45-Z-1004-06A |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1004-06A | Synthetic grease, sliding roof 500 g, DB supply specification 6827.60 | A 001 989 46 51 |
